| 電圧: | 380v/50hz | 原産地: | 中国(本土) | 銘柄: | kalibo | モデル番号: | yx3180j歯車ホブ盤 | 重量: | 6000/7000kg | 力(W): | 8.65kw | タイプ: | ギヤ歯切り工具で切る機械 | CNCまたはない: | 正常 | 条件: | 新しい | 認証: | iso9001ce | 次元(L*W*H): | 280*180*197cm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 最大。 工作物の直径:: | 800ミリメートル | 最大。 モジュール:: | 10mm | 電圧:: | 顧客のrequirmentに応じて | 技術文書:: | 英語 |
包装
| 包装: | 内部のパッキング: プラスチックcolth、 外のパッキング: 木製ケース |

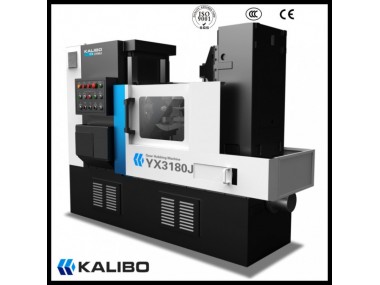

YX3180J High efficiency gear hobbing machine Product Description:
1.Capable of axial feed in clockwise or anti-clockwise milling in gear processing , capable of one time square cycle
2.Double worm gear pair utilized, efficiency is doubled compare to single worm gear pair
3.Induction motors instead of main motor and radial rapid travel motor, frequency convertor speed control instead of manual speed control, easy operating and cutting speed adjust freely
4.Machine bed, column with double-wall structure and heavier design as well to ensure high rigidity ,stable precision
5.Hydraulic and electric joint control , PLC control for electrical system with high rigidity , low failure rate , easy maintain
6.Designing safety device and automatic lubricating mechanism with automatic turn-off
7.Easy adjustment, suitable for batch production and multiple machine operated by one person
Main technical specifications:
| Description | Parameters | |
| Max. diameter of workpiece | mm | 800 |
| Max. module | mm | 10 |
| Max. helical angle | ° | ±45 |
| Max. speed of worktable | r/min | 5.2 |
| Speed of spindle | rpm | 40-200 |
| Distance from the hob center to worktable center | mm | 50-550 |
| Distance from the hob center to worktable surface | mm | 235-585 |
| Distance from the tailstock centerto worktable surface | mm | 400-630 |
| Max. size of hob | mm | Φ180*180 |
| Hob shifting distance | mm | 55 |
| Main motor power | KW | 5.5 |
| Total motor power | KW | 8.65 |
| Overall dimension | mm | 2800*1800*1970 |
| Net weight/gross weight | KG | 6000/7000 |
Packaging & Shipping
Inner packing:Plastic cloth
Outer packing: Wooden case
