| 電圧: | 380v/50hz | 原産地: | 中国(本土) | 銘柄: | kalibo | モデル番号: | ykx3132cnc5 | 重量: | 9000/10500kg | 力(W): | 28kw | タイプ: | ギヤ歯切り工具で切る機械 | CNCまたはない: | CNC | 条件: | 新しい | 認証: | iso9001ce | 次元(L*W*H): | 310*211*240cm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 最大。 工作物の直径:: | 320ミリメートル | 最大。 モジュール:: | 8mm | 電圧:: | 顧客のrequirmentに応じて | 技術文書:: | 英語 |
包装
| 包装: | 内部のパッキング: プラスチックcolth、 外のパッキング: 木製ケース |
YKX3132CNC5 high efficiency gear hobbing machine adopt the principle of generating method,with carrying out
index and differential compensation motion by electronic gearbox (EGB).
This model of CNC machine is designed to cut spur gears,helical gears,drum-shaped gears,worm wheels,sprockets and and small-taper gears.
Suited for the industries such as automobile,motorcycle,elevator and sprockets line in mass production.
Product features
1.The model is a CNC hobbing machine with 5 axes working under CNC control.The 5CNC controller axes are as follow:radial feed of column(X-axis), axial feed of hob head(Z-axis), worktable rotation(C-axis),rotation of hob spindle(B-axis) and hob shifting(Y-axis).All the exchange gears used on old-generation machines are now replaced by the electronic gearbox of the CNC system.single head hob or multi-head hob can be utilized for high speed processing.
2.Adopt large power AC spindle motor.Hob spindle equipped with high-precision encoder, real-time detection of spindle speed and phase.
3..Friendly interface, simple to input parameters. Easy operating.
4.Short transmission chain, good rigidity,high velocity.Max. hob rotation speed is 1000r/min.
5.Machine bed,column and worktable using 3D CAD design, and finite element stress analysis .
6.Designing independent hydraulic unit,easy setting-up and operation
7.Different lubricating points automatic lubricated, chip automatic removed, save time and more convenient.
Main technical specifications
| Description | Parameter | |
| Max. diameter of workpiece | mm | 320 |
| Max. module | mm | 8 |
| Max. hob head helical angle | ° | ±45 |
Max. speed of worktable | rpm | 32 |
| Speed of spindle | rpm | 1000 |
| Z axis rapid feed rate | mm/min | 900 |
| X axis rapid feed rate | mm/min | 900 |
| Y axis rapid feed rate | mm/min | 5000 |
| Distance from the hob center to worktable center | mm | 60-250 |
| Distance from the hob center to worktable surface | mm | 280-530 |
| Distance from the tailstock center to worktable surface | mm | 375-675 |
| Max. size of hob(D*L) | mm | Φ 160*200 |
| Hob shifting distance | mm | 150 |
| Total motor power | KW | 28 |
| Overall dimension | mm | 3100*2110*2400 |
| Net weight/Gross weight | KG | 9000/10500 |

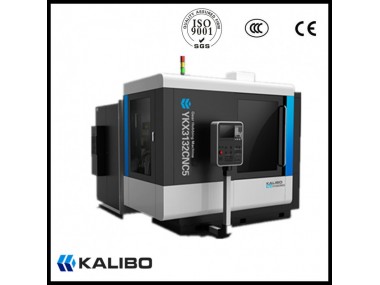

YKX3132CNC5 Pictures
