| 電圧: | 380v/50hz | 原産地: | 中国(本土) | 銘柄: | kalibo | モデル番号: | ykd31125cnc | 重量: | 15000/16500kg | 力(W): | 25.キロワット | タイプ: | ギヤ歯切り工具で切る機械 | CNCまたはない: | CNC | 条件: | 新しい | 認証: | iso9001ce | 次元(L*W*H): | 350*300*280cm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 最大。 工作物の直径:: | 600mm | 最大。 モジュール:: | 20mm | 電圧:: | 顧客のrequirmentに応じて | 技術文書:: | 英語 |
包装
| 包装: | 内部のパッキング: プラスチックcolth、 外のパッキング: 木製ケース |

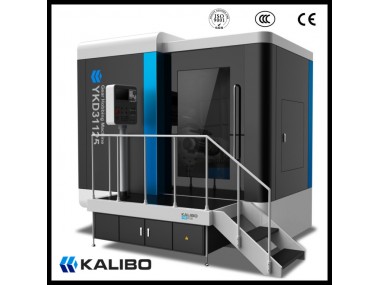

Product Description:
1.CNC axes: X+Z
Standard CNC system: Mitsubishi
Optional CNC system :Fanuc or Siemens
easy operating and reliable running
2.Machine bed, column and rear column with doublewall structure, bed weight more than 7T to ensure high rigidity, high speed, powerful hobbing, efficiency machining
3.base equipped with inclined chip removal groove, beneficial for iron effluxing and cooling oil flowing, and keeping heat balance as well
4. High accuracy indexing worm wheel pair utilized on worktable , reliable indexing with high indexing precision
5. Different lubricating points automatic lubricated, chip automatic removed, save time and more convenient
6.Constant temperature control in electrical box to ensure reliable operation.
Main technical specifications
| Description | Parameter | |
| Max. diameter of workpiece | mm | 1250 |
| Max. module | mm | 20 |
| Max. helical angle | ° | ±45 |
| Max. speed of worktable | r/min | 10 |
| Speed of spindle | rpm | 40-160(stepless) |
| Z axis rapid feed rate | mm/min | 900 |
| X axis rapid feed rate | mm/min | 900 |
| Distance from the hob center to worktable center | mm | 300-800 |
| Distance from the hob center to worktable surface | mm | 260-950 |
| Max. size of hob(D*L) | mm | Φ235*250 |
| Hob shifting distance | mm | 150 |
| Main motor power | KW | 18.5 |
| Total motor power | KW | 28.5 |
| Overall dimension(L*W*H) | mm | 5040*4800*3500 |
| Net weight/Gross weight | KG | 19000/22000 |
Inner packing:Plastic cloth
Outer packing: Wooden case
Standard equipments:
1.Main machine
2.Hob arbor set
3.Standard change gears
4.One set of special tools
5.Safety guard
6.Hydraulic and lubricating set
7.Automatic chip conveyor
8.Air conditioner electrical cabinet
9.Other accessories for installation
Optional equipments:
1.Hob arbor set (Beyond the standard)
2.Oil cooler
3.Other accessories request
