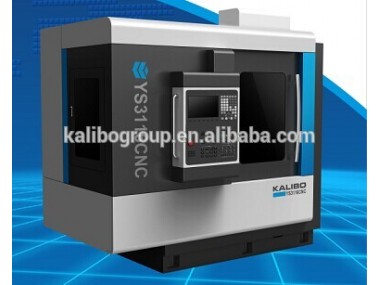

    ys3116cnc5歯車ホブ盤-ギヤ打抜き機
    商品番号: 13188917
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: kalibo モデル番号: YS3116
    重量: 3000/3500キログラム 力(W): 17.6KW タイプ: ギヤ歯切り工具で切る機械
    CNCまたはない: CNC 条件: 新しい 認証: iso9001: 2000
    次元(L*W*H): 2390*2110*2230ミリメートル 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため

    包装

    包装: 内部のパッキング: プラスチック製の布外のパッキング: 木製ケース

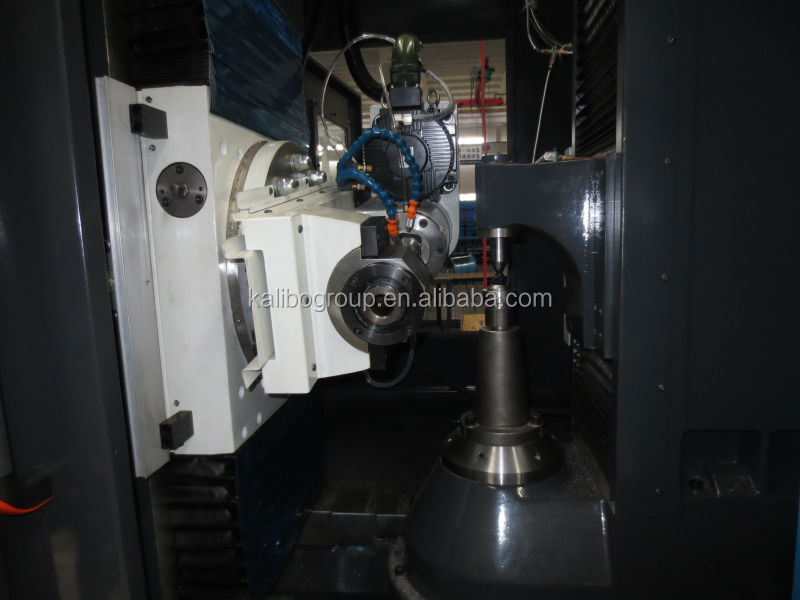

    Product features:

    1.CNC axis is X+Y+Z+B+C

    2.Short transmission china,good rigidity,high velocity

    3.Machine bed,column and worktable through finite element stress analysis

    4.Capable of dry or wet cutting

    5.Designing independent hydraulic unit,easy setting-up and operation

    6.Different lubricating points automatic lubricated,chip automatic removed,save time and more convenient

    7.Friendly interface,simple to input parameters.



    Main technical parameter:

    Max.diameter of workpiece:160mm

    Max.module:3mm

    Max.helix angle:±45°

    Max.speed of worktable:500rpm

    Speed of spindle:3000rpm

    Z axis rapid feed rate:6500mm/min

    X axis rapid feed rate:6500mm/min

    Y axis rapid feed rate:6500mm/min

    Distance from the hob center to worktable center:15-215mm

    Distance from the hob center to worktable surface:150-450mm

    Distance from outer bracker center to worktable surface:350-670mm

    Max.size of hob:Ø80*140

    Hob shifting distance:100mm

    Total motor power:17.6KW

    Overall demension:239*211*223cm

    Net weight/gross weight:3000/3500kg.
