| 原産地: | 中国(本土) | 銘柄: | qnice led | モデル番号: | p8/p10/p12/p16 | 表示機能: | ビデオ | 管の破片色: | フルカラー | ピクセル: | 8ミリメートル/10ミリメートル/12ミリメートル/16ミリメートル | スクリーン次元: | 4メートル× 3メートル、5メートル× 4メートル、6メートル× 4メートル、カスタマイズされたサイズ | 使用法: | 屋外 | ピクセル構成: | smd3535/dip346 | ledチップ: | エピスター/クリー/日亜化学工業 | 明るさ: | 6000cd〜8500cd | ledパネル/キャビネットサイズ: | 1024 × 1024ミリメートル/960 × 960ミリメートル | 保護レベル: | 防水ip65 | 寿命: | 100,000時間 | 電力供給: | meanwell/g-エネルギー/yhy/cl | ledビデオプロセッサ: | lvp605/lvp605s/lvp603/lvp603s | 認証: | ce、fcc、rohs、iso9001、tuv、ul | 保証: | 3年 |
包装
| 包装: | フライトケースまたはwoodencase |
Factory price P8 P10 P12 P16 SMD and DIP RGB Full Color Outdoor LED Display
Product Description

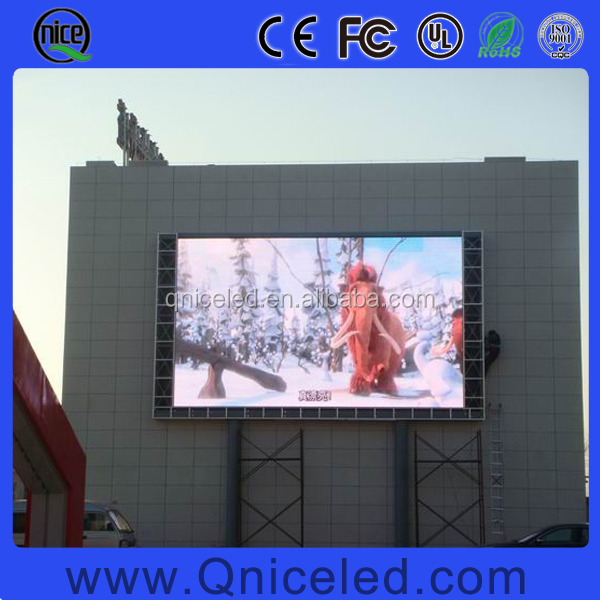

P8/P10/P12/p16 outdoor led screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.

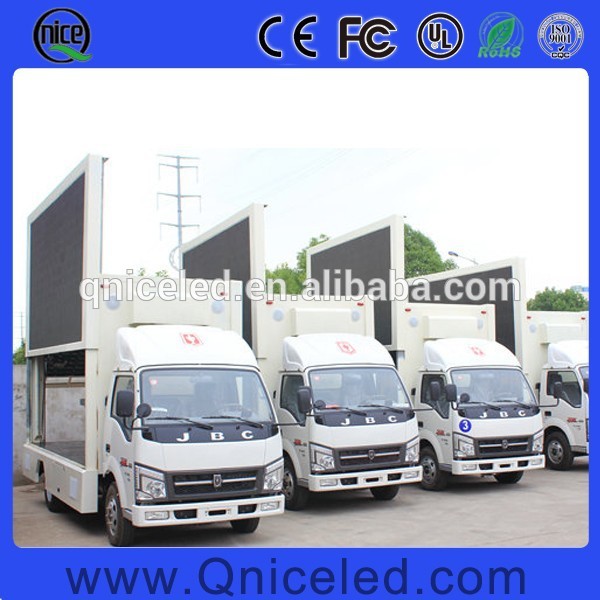

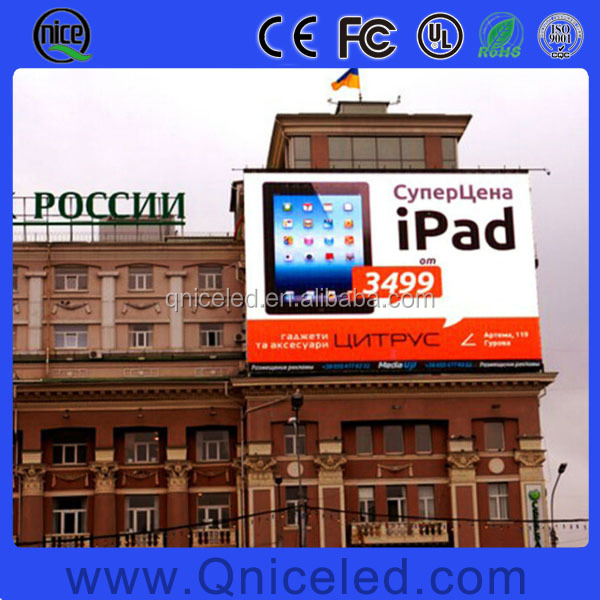

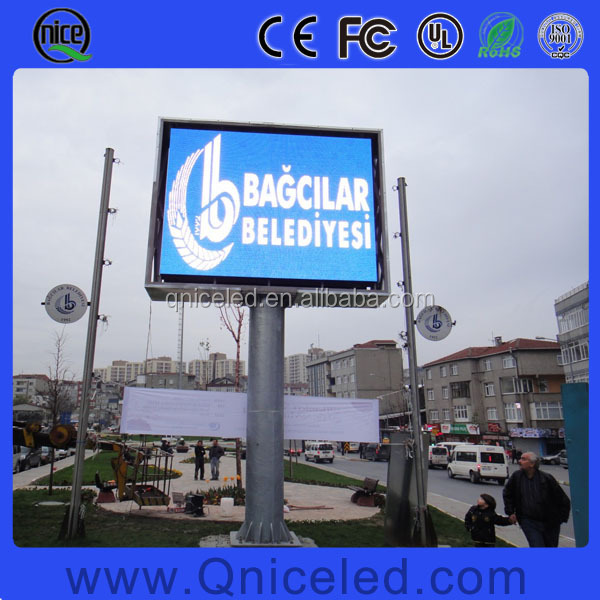

It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Main advantages:
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.
Technical Specification:
| Outdoor Fixed Installation LED Advertising Display | ||||||||||||||||||||
| Item | Techinical Specifications | |||||||||||||||||||
| Pixel Pitch | 8mm | 10mm | 12mm | 16mm | ||||||||||||||||
| LED Configuration | SMD 3-in-1(SMD3535) | DIP346 (1R1G1B) | DIP346 (1R1G1B) | DIP346 (1R1G1B) | ||||||||||||||||
| Pixel Density | 15625 pixels/sq.m | 10000 pixels/sq.m | 6944 pixels/sq.m | 3906pixels/sq.m | ||||||||||||||||
| Module Size | 256mm*128mm | 160mm*160mm | 192mm*192mm | 256mm*128mm | ||||||||||||||||
| Module Resilution | 32pixel*16pixel | 16pixel*16pixel | 16pixel*16pixel | 16pixel*8pixel | ||||||||||||||||

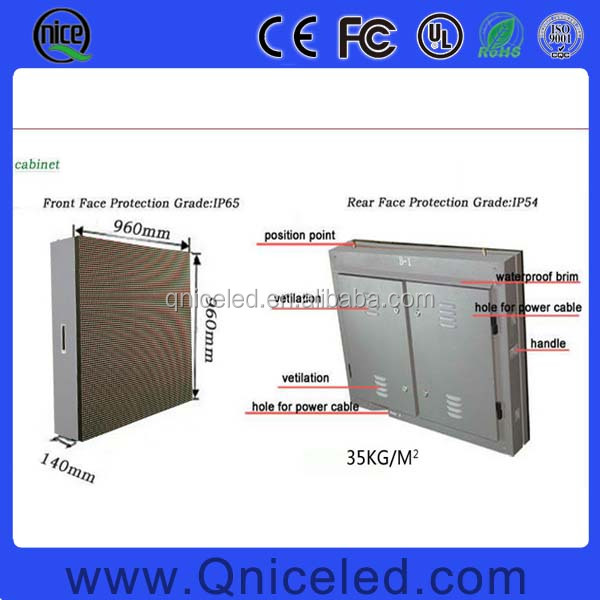

| Cabinet Size | 1024mm*1024mm | 960mm*960mm | 960mm*960mm | 1024mm*1024mm | ||||||||||||||||
| Cabinet Resolution | 128pixels*128pixels | 96pixels*96pixels | 80pixels*80pixels | 64pixels*64pixels | ||||||||||||||||
| Cabinet Material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | ||||||||||||||||
| Cabinet weight | 50kg/sqm or 40kg/sqm | 50kg/sqm or 40kg/sqm | 50kg/sqm or 40kg/sqm | 50kg/sqm or 40kg/sqm | ||||||||||||||||
| Brightness | 6000cd/sqm | 8000cd/sqm | 7500cd/sqm | 8500cd/sqm | ||||||||||||||||
| Colour temperature | 3500K-9500K(adjustable) | 3500K-9500K(adjustable) | 3500K-9500K(adjustable) | 3500K-9500K(adjustable) | ||||||||||||||||
| Viewing Angle | H:140°/V:140° | H:110°/V:55° | H:110°/V:55° | H:110°/V:55° | ||||||||||||||||
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ||||||||||||||||
| Ave. Power consumption | 240 W/sqm | 200 W/sqm | 200 W/sqm | 240 W/sqm | ||||||||||||||||
| Max. Power consumption | 800W/sqm | 600W/sqm | 600W/sqm | 800W/sqm | ||||||||||||||||
| Best Viewing Distance | ≥8 | ≥10 | ≥12 | ≥16 | ||||||||||||||||
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | ||||||||||||||||
| frame rate | 50/60 Hz/sec | 50/60 Hz/sec | 50/60 Hz/sec | 50/60 Hz/sec | ||||||||||||||||
| Refresh rate | ≥1200Hz | ≥1200Hz | ≥1200Hz | ≥1200Hz | ||||||||||||||||
| Drive Mode | 1/4 scan | 1/4 scan | 1/4 scan | Static contant current | ||||||||||||||||
| Brightness Adjustment | Manual/Auto/Programmable | |||||||||||||||||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | |||||||||||||||||||
| Output Voltage | 5V,40A | |||||||||||||||||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | |||||||||||||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | |||||||||||||||||||
| Protection Level | IP65 | |||||||||||||||||||
| Life-span | 100,000 hours | |||||||||||||||||||
| MTBF | 10,000 hours | |||||||||||||||||||
| Malfunction dot rate | < 0.0001 | |||||||||||||||||||
| Storage Temp/Humidity | -40~+65/10~90%RH | |||||||||||||||||||
| Operating Temp/Humidity | -25~+65/10~90%RH | |||||||||||||||||||
| Control System | Synchronous/Asynchronous/Wifi/3G Wireless for choice | |||||||||||||||||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | |||||||||||||||||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | |||||||||||||||||||

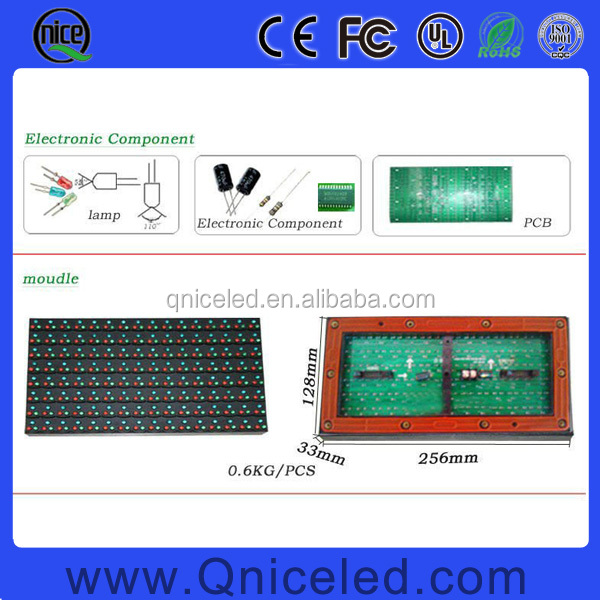

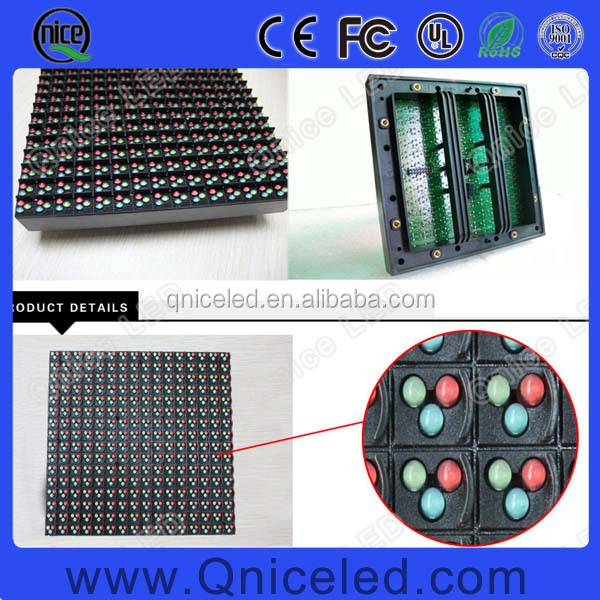

P8 P10 P12 P16 LED Module:
