| 原産地: | 中国(本土) | 銘柄: | QNICE-O-P8 | モデル番号: | p8 | 表示機能: | ビデオ | 管の破片色: | フルカラー | ピクセル: | 8ミリメートル | スクリーン次元: | 1サイド、2側、3側、カスタマイズされたサイズ | 使用法: | 屋外 | ピクセル構成: | smd 3イン1 | ピクセル解像度: | 15625ピクセル/平方メートル | ledチップ: | 台湾エピスター | 明るさ: | > 8000cd | ledモジュールサイズ: | 256 × 128ミリメートル | ledキャビネットサイズ: | 1024 × 1024ミリメートル | 保護レベル: | 防水ip65 | 寿命: | 100,000時間 | 保証: | 3年 | 認証: | ce、fcc、rohs |
包装

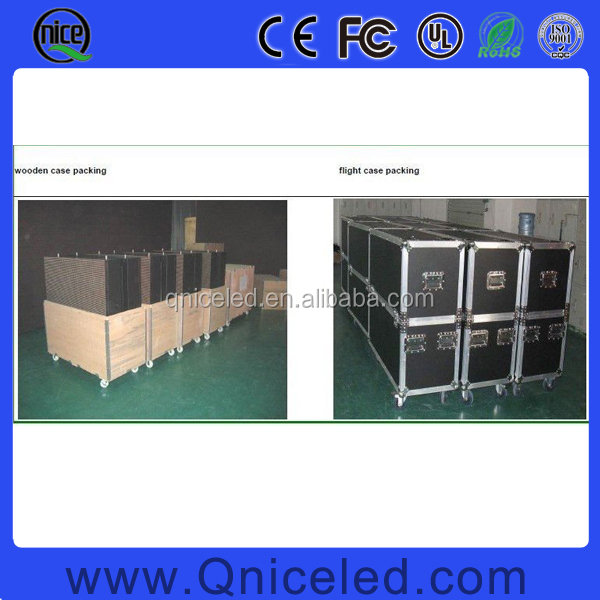

| 包装: | フライトケースまたはwoodencase |

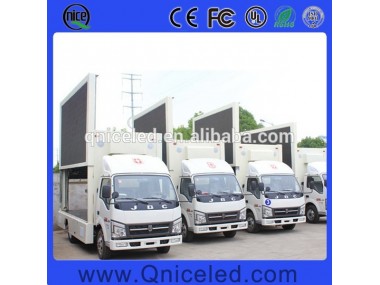

P8 SMD Outdoor LED digital mobile billboard truck for sale
Product Features:
1. High resolution 15625pixels/sqm, HD nice video advertising effect.
2. SMD 3-in-1 LED encapsulation confirm the wide viewing angle,seamless and flatness
3. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
4. Long viewing distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surroundings,
6. Can be set to open and close the screen automatically
7. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
8. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
LED Display Specification:
| Item | Techinical Specifications | ||||
| Pixel Pitch | 8mm | ||||
| LED Configuration | SMD 3-in-1 | ||||
| Pixel Density | 15625 pixels/sq.m | ||||
| Module Size | 256mm*128mm | ||||
| Module Resilution | 32pixel*16pixel | ||||
| Cabinet Size | 1024mm*1024mm | ||||
| Cabinet Resolution | 128pixels*128pixels | ||||
| Cabinet Material | Iron/Aluminum | ||||
| Cabinet weight | 50kg/sqm or 40kg/sqm | ||||
| Brightness | 5500cd/sqm | ||||
| Colour temperature | 3500K-9500K(adjustable) | ||||
| Viewing Angle | H:140°/V:140° | ||||
| Brightness Uniformity | ≥97% | ||||
| Brightness Adjustment | Manual/Auto/Programmable | ||||
| Ave. Power consumption | 240 W/sqm | ||||
| Max. Power consumption | 800W/sqm | ||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | ||||
| Output Voltage | 5V,40A | ||||
| Best Viewing Distance | 8m~200m | ||||
| Contrast ratio | 5000:1 | ||||
| frame rate | 50/60 Hz/sec | ||||
| Refresh rate | ≥1200Hz | ||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | ||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||
| Protection Level | IP65 | ||||
| Life-span | 100,000 hours | ||||
| MTBF | 10,000 hours | ||||
| Malfunction dot rate | < 0.0001 | ||||
| Storage Temp/Humidity | -30~+60/10~90%RH | ||||
| Operating Temp/Humidity | -20~+50/10~90%RH | ||||
| Drive Mode | 1/4 scan | ||||
| Control System | Synchronous/Asynchronous/Wifi/3G Wireless for choice | ||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | ||||

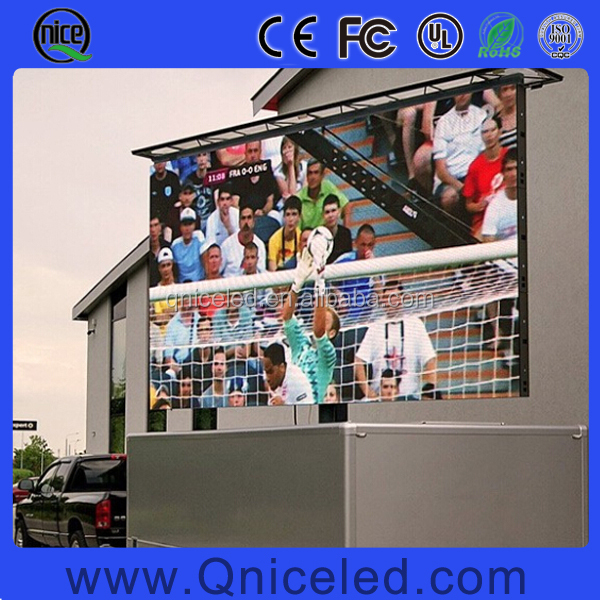

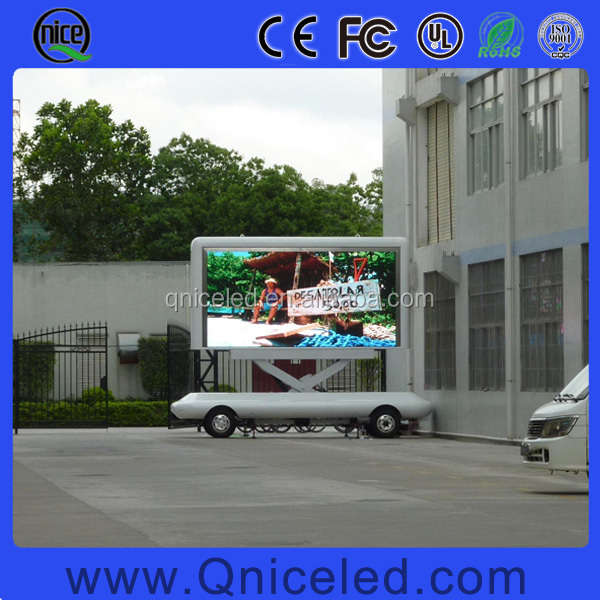

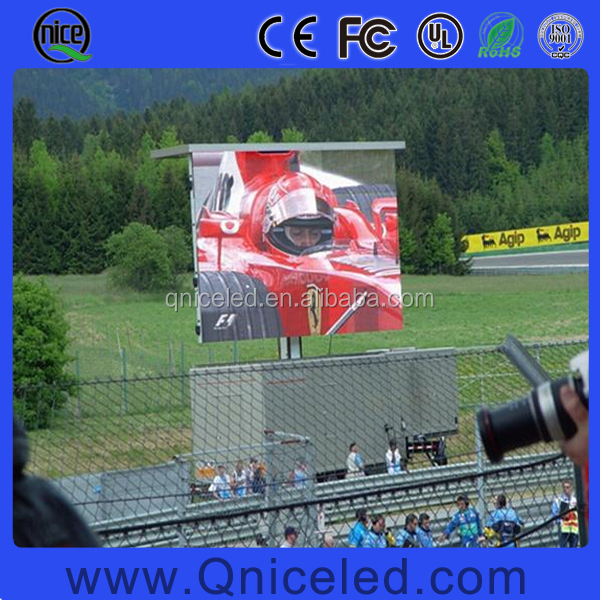

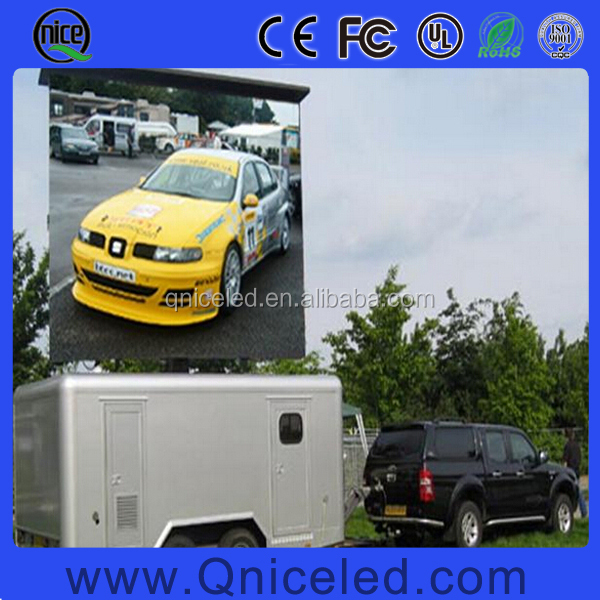

Project Cases:
