| 原産地: | 中国(本土) | 銘柄: | QNICE-O-P10 | モデル番号: | p10 | 表示機能: | ビデオ | 管の破片色: | フルカラー | ピクセル: | 10mm | スクリーン次元: | 4メートル× 3メートル、5メートル× 3メートル、6メートル× 4メートル、8メートル× 4メートル、9メートル× 6メートル、カスタマイズされたサイズ | 使用法: | 屋外 | ピクセル構成: | 1r1g1b | ピクセル解像度: | 10000ピクセル/平方メートル | ledチップ: | 台湾エピスター | 明るさ: | > 8000cd | 保護レベル: | 防水ip65 | 寿命: | 100,000時間 | 認証: | ce、fcc、rohs | 保証: | 3年 |
包装
| 包装: | フライトケースまたはwoodencase |
Outdoor advertising P10 LED display full color video digital billboard
Product Features:
1. High resolution 10000pixels/sqm, HD nice video advertising effect.
2. DIP LED encapsulation confirm the high brightness even under strong sunlight
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance,long life span
4. Long viewing distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surroundings
6. Can be set to open and close the screen automatically
7. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
8. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
Outdoor P10 LED Display Specification:
| P10 Outdoor Full Color LED Display | |||||
| Item | Techinical Specifications | ||||
| Pixel Pitch | 10mm | ||||
| LED Configuration | DIP346 (1R1G1B) | ||||
| Pixel Density | 10000 pixels/sq.m | ||||
| Module Size | 160mm*160mm | ||||
| Module Resilution | 16pixel*16pixel | ||||

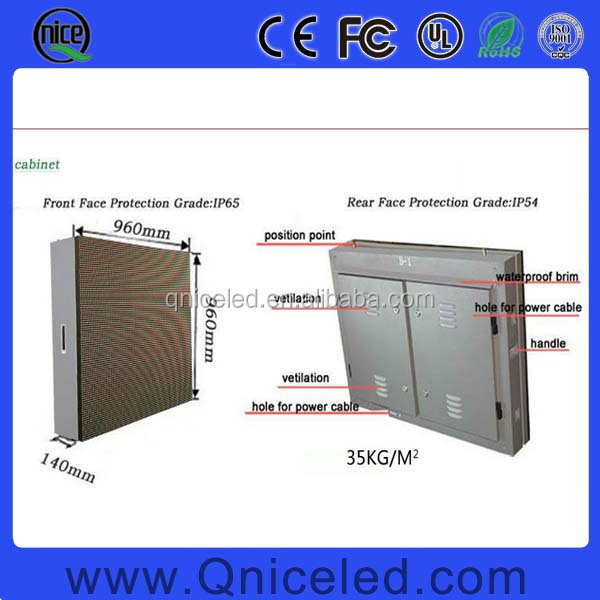

| Cabinet Size | 960mm*960mm | ||||
| Cabinet Resolution | 96pixels*96pixels | ||||
| Cabinet Material | Iron/Aluminum | ||||
| Cabinet weight | 50kg/sqm or 40kg/sqm | ||||
| Brightness | 8000cd/sqm | ||||
| Colour temperature | 3500K-9500K(adjustable) | ||||
| Viewing Angle | H:110°/V:55° | ||||
| Brightness Uniformity | ≥97% | ||||
| Brightness Adjustment | Manual/Auto/Programmable | ||||
| Ave. Power consumption | 200 W/sqm | ||||
| Max. Power consumption | 600W/sqm | ||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | ||||
| Output Voltage | 5V,40A | ||||
| Best Viewing Distance | 10m~200m | ||||
| Contrast ratio | 5000:1 | ||||
| frame rate | 50/60 Hz/sec | ||||
| Refresh rate | ≥1200Hz | ||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | ||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||
| Protection Level | IP65 | ||||
| Life-span | 100,000 hours | ||||
| MTBF | 10,000 hours | ||||
| Malfunction dot rate | < 0.0001 | ||||
| Storage Temp/Humidity | -30~+60/10~90%RH | ||||
| Operating Temp/Humidity | -20~+50/10~90%RH | ||||
| Drive Mode | 1/4 scan | ||||
| Control System | Synchronous/Asynchronous/Wifi/3G Wireless for choice | ||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | ||||

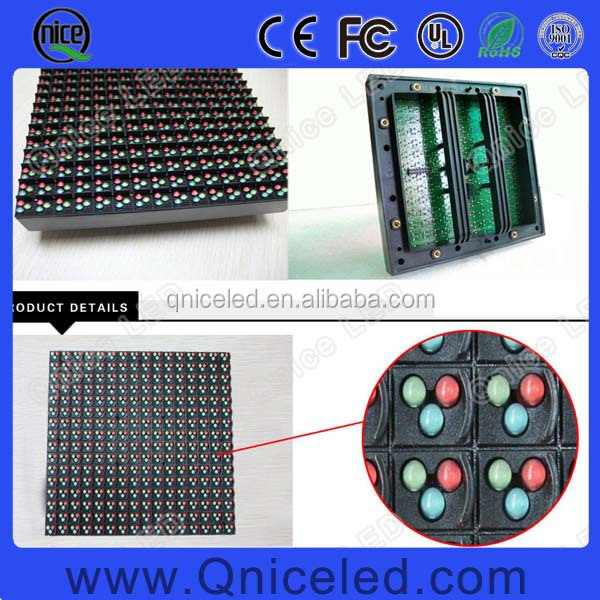

Outdoor P10 LED Module:
