| 原産地: | 中国(本土) | 銘柄: | qnice led | モデル番号: | p4.8/p6 | 表示機能: | ビデオ | 管の破片色: | フルカラー | ピクセル: | 4.8ミリメートル/6ミリメートル | スクリーン次元: | オプション | 使用法: | 屋内 | ピクセル構成: | smd 3イン1 | ledチップ: | 台湾エピスター | 視野角: | 360 ° | 明るさ: | > 2000cd | ledのボール径: | 1.2メートル/1.5メートル/1.8メートル/2メートル/3.6メートル/4メートルのための選択 | 構造設計: | 中空アルミ構造 | 寿命: | 100,000時間 | 認証: | ce、fcc、rohs、tuv、ul | 保証: | 2〜3年 |
包装
| 包装: | フライトケースまたはwoodencase |
Hot Sale 3D Full Color LED Ball display 360 degree video advertising Sphere LED display
Product Features:
1. 360 degree viewing angle, nice video, pictures visual effect.
2. Special design LED modules ensure seamless assembly.
3. Hollow Aluminum Structural design reduce the LED Ball weight.
4. Support Synchronous,Asynchronous,Wifi,3G,4G control.
5. LED Ball Diameter 1.2m, 1.5m, 1.8m, 2m, 2.5m ,3.6m, 4m for you for choice.
6. Support hanging, floor stand, embedded installation, etc.
7. Widely used in hotel, stage, club, museum, exhibition hall, shopping mall, etc.
QNICE Sphere LED Ball Display Specification:
| Item | Techinical Specifications | |||||||||
| Pixel Pitch | 4.8mm | 6mm | ||||||||
| LED Configuration | SMD 3-in-1 (SMD2121) | SMD 3-in-1 (SMD3528) | ||||||||
| Pixel Density | 43264 pixels/sq.m | 27777pixels/sqm | ||||||||
| Diameter Available | 1.2m/1.5m/1.8m/3.6m | 1.2m/1.5m/2m/2.5m/3.6m/4m | ||||||||
| LED Ball Surface Area | 4.52m2/7.1m2/10.18m2/40.72m2 | 4.52m2/7.1m2/12.56m2/40.72m2/50.26m2 | ||||||||
| LED Ball Volumn | 0.91m3/1.77m3/3.05m3/24.4m3 | 0.91m3/1.77m3/4.19m3/24.4m3/33.51m3 | ||||||||
| LED Ball Weight | 125KG/180KG/390KG/980KG | 125KG/180KG/430KG/680KG/980KG/1170KG | ||||||||
| Brightness | 2000cd/sqm | 1800cd/sqm | ||||||||
| Colour temperature | 3500K-9500K(adjustable) | 3500K-9500K(adjustable) | ||||||||
| Viewing Angle | 360° | 360° | ||||||||
| Ave. Power consumption | 500W/sqm | 500W/sqm | ||||||||
| Max. Power consumption | 1200W/sqm | 1200W/sqm | ||||||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | AC220V/50HZ or AC110V/60HZ (±10%) | ||||||||
| Output Voltage | 5V,40A | 5V,40A | ||||||||
| Best Viewing Distance | 4m~150m | 6m~150m | ||||||||
| frame rate | 50/60 Hz/sec | 50/60 Hz/sec | ||||||||
| Refresh rate | 2000Hz | 2000Hz | ||||||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | R(256bit) x G(256bit) x B(256bit) | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | R(1024) x G(1024) x B(1024) | ||||||||
| Protection Level | IP43 | IP43 | ||||||||
| Life-span | 100,000 hours | 100,000 hours | ||||||||
| MTBF | 10,000 hours | 10,000 hours | ||||||||
| Malfunction dot rate | < 0.0001 | < 0.0001 | ||||||||
| Storage Temp/Humidity | -40~+60/10~80%RH | -40~+60/10~80%RH | ||||||||
| Operating Temp/Humidity | -20~+50/10~90%RH | -20~+50/10~90%RH | ||||||||
| Drive Mode | 1/16 scan | 1/8 scan | ||||||||
| Control System | Synchronous/Asynchronous/Wifi/3G/4G Wireless for choice | |||||||||
| Input Signal | RF,TV,RGB,S-Video,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | |||||||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | |||||||||

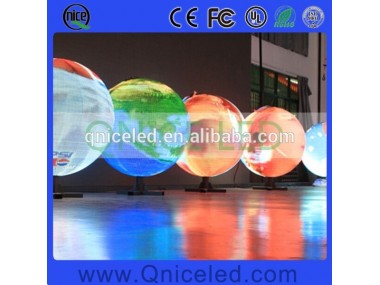

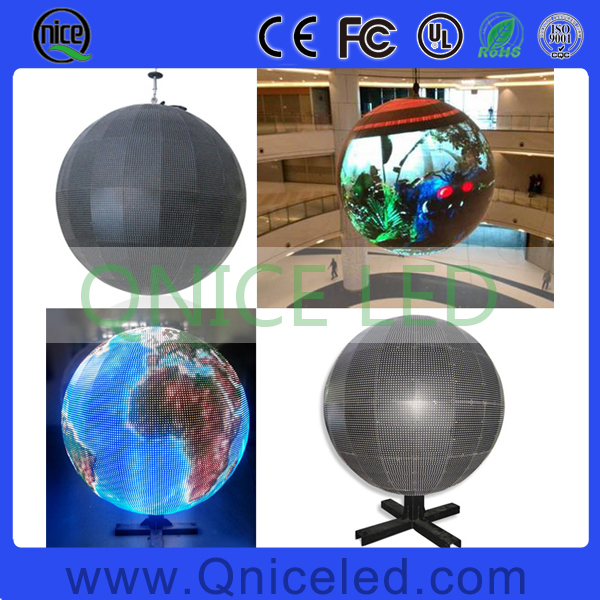

Our LED Ball Project Cases:
