| 原産地: | 中国(本土) | 銘柄: | QNICE-O-F-P10 | モデル番号: | p10 | 表示機能: | ビデオ | 管の破片色: | フルカラー | ピクセル: | 10ミリメートル | 使用法: | 屋外 | ピクセル構成: | smd 3イン1 | 明るさ: | > 6500cd | ledチップ: | 台湾エピスター | ledキャビネット: | ダイカストアルミ | ledキャビネットサイズ: | 640 × 640ミリメートル | 視野角: | h: 140 °/v: 140 ° | 保護レベル: | 防水ip65 | 寿命: | 100,000時間 | 認証: | ce、fcc、rohs | 保証: | 2年 |
包装
| 包装: | フライトケースまたはwoodencase |
Die-casting Aluminum SMD Outdoor Rental LED Screen
1. SMD 3-in-1 LEDs,nice videos, wide viewing angle
2. Die-casting aluminum LED cabinets,nice appearance and good quality
3. super thin, light weight, with handles and fast locks, easy to install
4. waterproof IP65, oxidation resistance, anti-rust
5. flightcase package, easy to take the LED display to different places according your need.

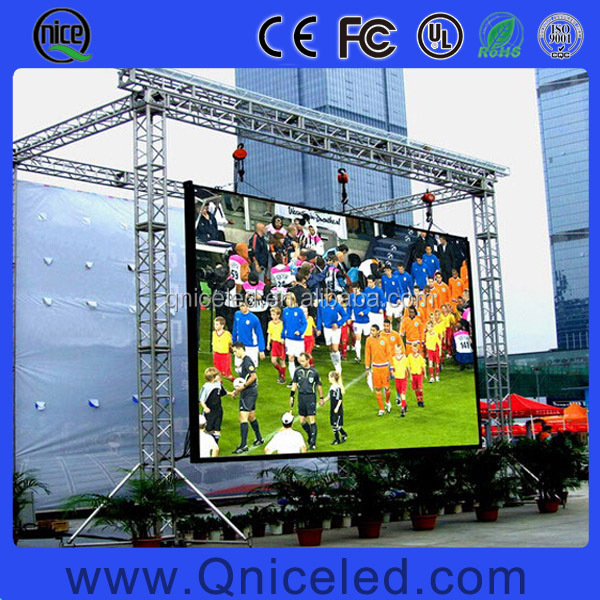

6. suitable for stage rental, event show, concert, mobile advertising, etc
P10 SMD Die-casting Aluminum Stage Rental LED Display Specification:
| Item | Techinical Specifications | ||||
| Pixel Pitch | 10mm | ||||
| LED Configuration | SMD 3-in-1 (SMD3535) | ||||
| Pixel Density | 10000 pixels/sq.m | ||||
| Module Size | 320mm*160mm | ||||
| Module Resilution | 32pixel*16pixel | ||||
| Cabinet Size | 640mm*640mm | ||||
| Cabinet Resolution | 64pixels*64pixels | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Cabinet weight | 18kg | ||||
| Brightness | 5500cd/sqm | ||||
| Colour temperature | 3500K-9500K(adjustable) | ||||
| Viewing Angle | H:120°/V:120° | ||||
| Brightness Uniformity | ≥97% | ||||
| Brightness Adjustment | Manual/Auto/Programmable | ||||
| Ave. Power consumption | 200 W/sqm | ||||
| Max. Power consumption | 600W/sqm | ||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | ||||
| Output Voltage | 5V,40A | ||||
| Best Viewing Distance | 10m~200m | ||||
| Contrast ratio | 5000:1 | ||||
| frame rate | 50/60 Hz/sec | ||||
| Refresh rate | ≥1200Hz | ||||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | ||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||
| Protection Level | IP65 | ||||
| Life-span | 100,000 hours | ||||
| MTBF | 10,000 hours | ||||
| Malfunction dot rate | < 0.0001 | ||||
| Storage Temp/Humidity | -30~+60/10~90%RH | ||||
| Operating Temp/Humidity | -20~+50/10~90%RH | ||||
| Drive Mode | 1/4 scan | ||||
| Control System | Synchronous/Asynchronous/Wifi/3G Wireless for choice | ||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | ||||

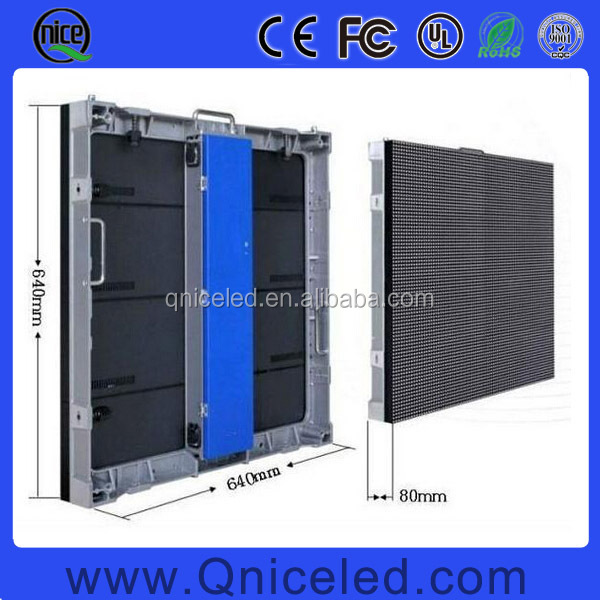

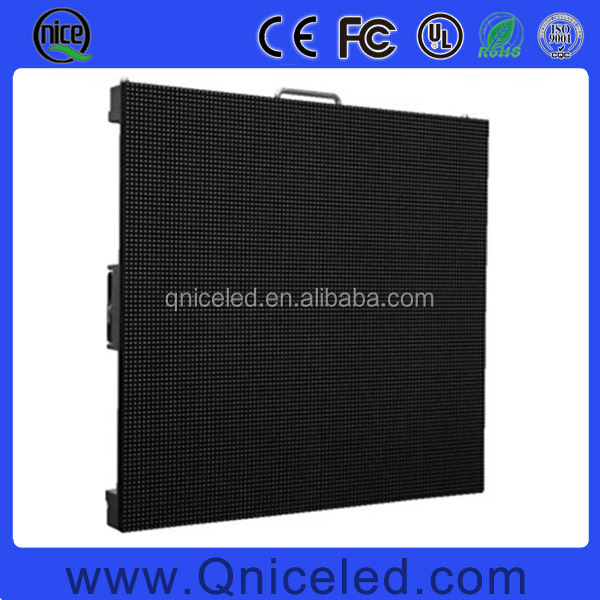

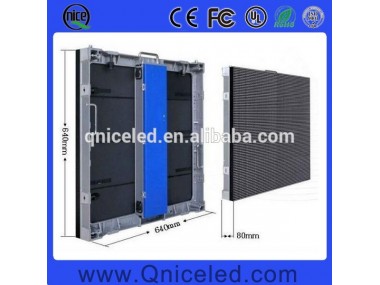

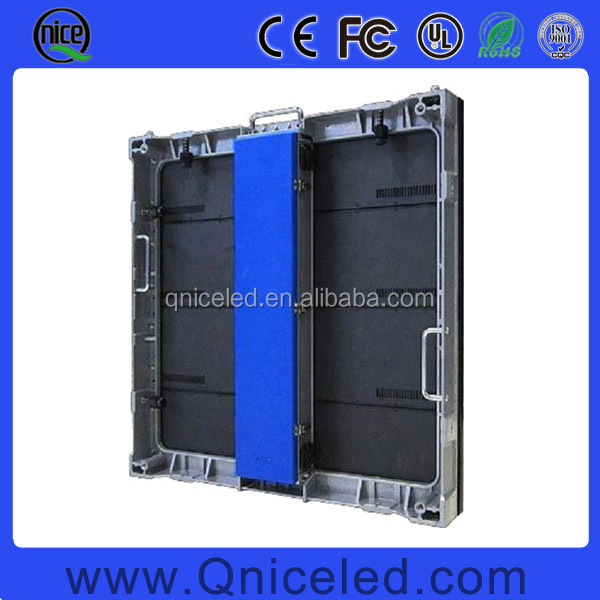

P10 SMD Die-casting Aluminum LED Cabinets:
