| 原産地: | 中国(本土) | 銘柄: | hosn | モデル番号: | lhd 450/9 | コローレ: | ブルー | 認証: | CE | 効率: | に応じてモータブランド | 出力電力: | 250kw |
包装
| 包装: | 締結する提案によって設計するオランダ会社; 耐航性のあるパッキング; 燻蒸の自由の電気部品のための真空包装カートン |

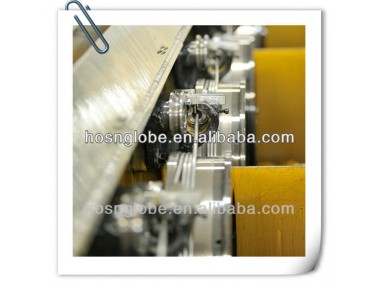

aluminium wire drawing machine
1, GENERAL DEscriptION
This machine is used to draw φ3.0-φ4.5mm Al and Al Alloy wires from 8.0mm Al rod, the max speed is 21 m/s. The drawing blocks are mounted in one row. The constant-speed wheel and the other 8 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.
2, TECHNICAL PARAMETER
2.1 | Inlet wire | Φ8.0mm |
2.2 | Outlet wire | Φ3.0-φ4.5mm |
2.3 | Max speed of drawing | 18m/s |
2.4 | Drawing block size | φ450mm |
2.5 | Max number of passes | 9 |
2.6 | Die dimension | Φ50×30 |
2.7 | Capacity of the accumulator | 5m |
2.8 | Dual-reel spooling bobbin size | PND500 and PND630 |
2.9 | Main motor power | 315kW (DC) |
2.10 | Power of motor for constant speed wheel | 75kW (DC) |
2.11 | Power of motor for dual-reel take up | 30kW×2 (DC ) |
2.13 | Machine dimension | 20400 mm×8040 mm×5050 mm |
