| 原産地: | 中国(本土) | 銘柄: | hosn | モデル番号: | LHD450/9 | 特性: | でannealer | マックス描画死ぬ: | 9 | メインモータ( kw): | 250 | 総電力( kw): | 480 | 入口ワイヤー直径( mm): | 8.0 | 出口ワイヤー直径( mm): | 2.0-4.0 | 出力電力: | 480kw | 認証: | ce | タイプ: | 他の | 効率: | 他の |
包装
| 包装: | 締結する提案によって設計するオランダ会社; 耐航性のあるパッキング; 燻蒸の自由のカートン |
Technical Specification
| Num | Type | Max drawing dies | Inlet wire diameter(mm) | Outlet wire diameter(mm) | Max. line speed(m/s) | Drawing capstan diameter | Main motor(kw) | Total power(kw) |
|---|---|---|---|---|---|---|---|---|
| 1 | LHD450/9 | 9 | Φ8.0 | Φ2.0-4.0 | 18 | 450 | 250 | 480 |

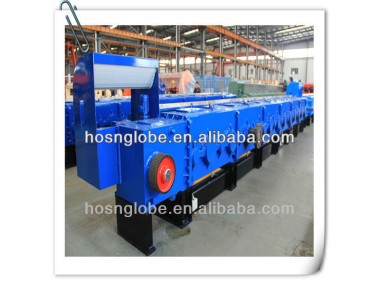

Main Capability Characteristic
- The drawing blocks rank in a horizontal row, and the cantilevers of all die holders are very short and in equal length.
- The surface of drawing blocks is coated with tungsten carbide material, whick is strong in hardness and wear proof, having long life span.
- Main drawing machine and dead-block are driven separately, and all the dies can be changed conveniently and easily.
- Continuous dual take up, automatic reel-change, the automatic reel-change can be done at more than 99% efficiency.
- Drive by DC motor, the imported PLC and touch screen (Siemens and Preface)is convenient for operator to set and display the parameter on the touch screen.
