原産地: | 中国(本土) | 銘柄: | hosn | モデル番号: | JGG630 1 + 6 |
条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | オプションによる買い手 | デザイン: | を最も新しいと最も高度なデザイン | 認証: | iso9001: 2008、 ceおよびsgs | 保証: | 1年 |
包装
包装: | 1.耐航性のあるパッキング; 2.非燻蒸パレット; 3.電気部品のための真空包装; |

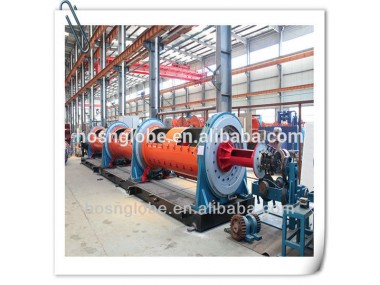

tubular strander Product des
criptio
nThis machine is suitable for producing 1+6 compact, and bare Al/Cu wire, aluminum alloy wire and ACSR and low carbonsteel wire.Stranding single wire diameter: Cu ø1.3 -ø 3.5mm; Al or Alloy ø1.3-ø 5.0mm; Steel ø1.0 –ø3.5mm;Max stranding out diameter: 15mm;Max Speed of f
rame carriage:600 r/min (unloading);Stranding pitch:37.77~367.93mm;Center pay-off reel type:PND630; Pay off bobbin in the cage:PND630;Take-up bobbin:PN800~PN1600;Power of main motor 75 KW AC;Capstan motor 37KW AC ;Haul-off capstan size: Φ1200mm; Haul-off linear speed 18.59~121.09m/min.
Eectric partner:Siemens, ABB, Schneider, Danfoss and so on famous brand.
Mechanical partner: NSK, CKD, SKF, FESTO, HWL and so on famous brand
JGG630/1+6 tubular machine with loading and unloading device layout drawing
