| 原産地: | 中国(本土) | 銘柄: | knd防水キースイッチ | モデル番号: | 防水キースイッチbs | 機械生命: | 100000回 | 最高。 電圧: | 415v | 最高。 現在: | 15a |
包装
| 包装: | 防水非常停止押しボタンキースイッチがパッケージ化されカートンで。 我々はまた、 を追加することができpp袋外防水非常停止押しボタンキースイッチカートン湿気を防ぐために。 防水200個非常停止押しボタンキースイッチに包装するカートン。 各防水非常停止押しボタンキースイッチは10箱カートン。 各ボックス防水20個を持ってい非常停止押しボタンキースイッチ。 |
仕様
Description

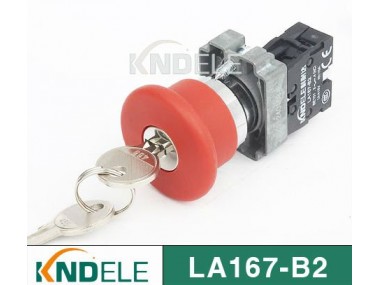

We are a manufacturing push button switch organization.push button switch is our main product.These are our company's waterproof emergency stop push button key switch models in the picture , you can add X before the waterproof emergency stop push button key switch models. If you want one waterproof emergency stop push button key switch for sample ,please contact us .thank you.
| waterproof emergency stop push button key switch Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| waterproof emergency stop push button key switch Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| waterproof emergency stop push button key switch Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Head size | Contact Type | Reference | |
Our waterproof key switches have waterproof function Our waterproof key switch use the fireproof material which can protact it from burning Our waterproof key switch screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear The push button switch contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
