| 原産地: | 中国(本土) | 銘柄: | knd | モデル番号: | 1021 | 機械生命: | 50、 000 | 最高。 電圧: | 250v | 最高。 現在: | 15a |
包装
| 包装: | 標準輸出包装 |
仕様
Packing & Delivery
Packing: standard exporting packaging or according to customer's request
Delivery detail: 7 days after payment or it depands on the quantity
You can contact our sale department for more details.
Description

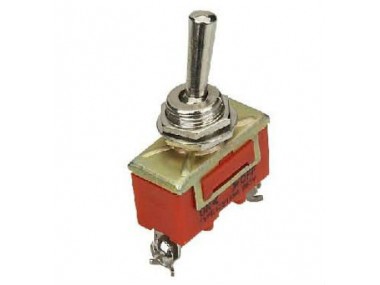

Toggle Switch
The design of the product accords with the rated value 10A-20A, 250V. Besides, it can be used in low voltage DC with the proper scope of work.
Characters
1.Electrical Ratings: 10A-20A, 250V.
2.Heavy load level
3.Bushing block
4.Multi-function
Technical Parameters
| Electrical Ratings | 10A 250VAC; 15A 125VAC; 1/2HP 125-25 |
| Electrical Life | > 50,000 times |
| Contact Resistance | < 0.02Ω |
| Dielectric Strength | 1,000Vrms min |
| Insulation Resistance | > 100MΩ min |
| Operating Temperature | -25~80 |
Application Range
Food Machinery,Generators,Industrial Controls,Office Automation and Market etc.
