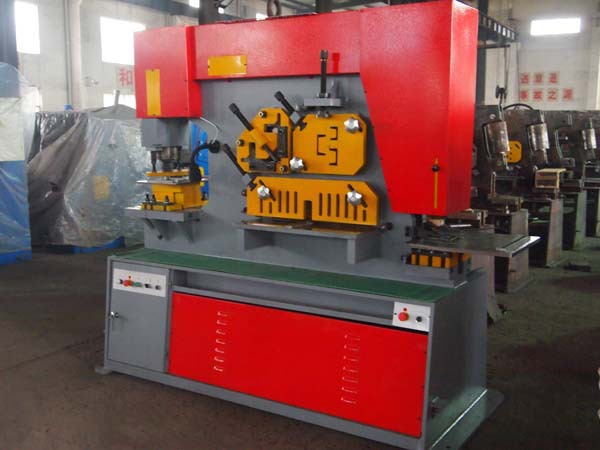

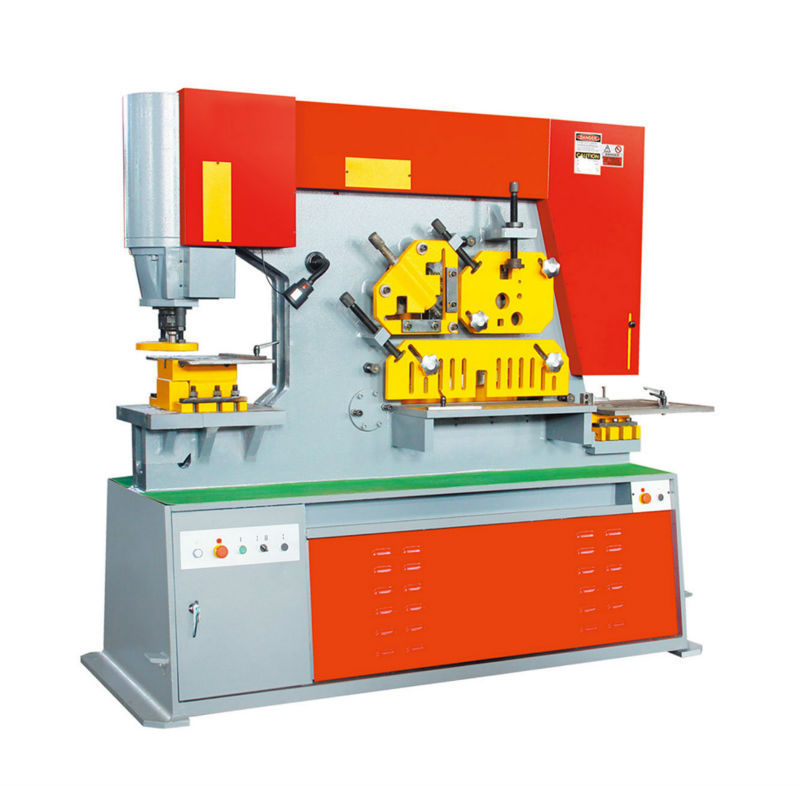

hydraulic punch and shear,angle cutter notching machine
Specifications
1.CE,ISO,CQC Certification
2.BOSCH Hydraulic system
3.High performance
4.High quality with good price
5.Easy to operation
Product Description

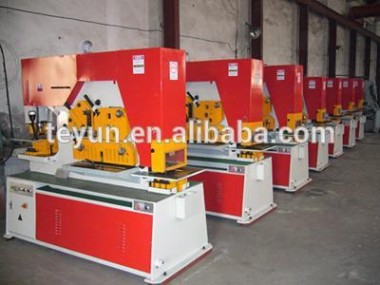

1.whole structure of the hydraulic iron worker : |

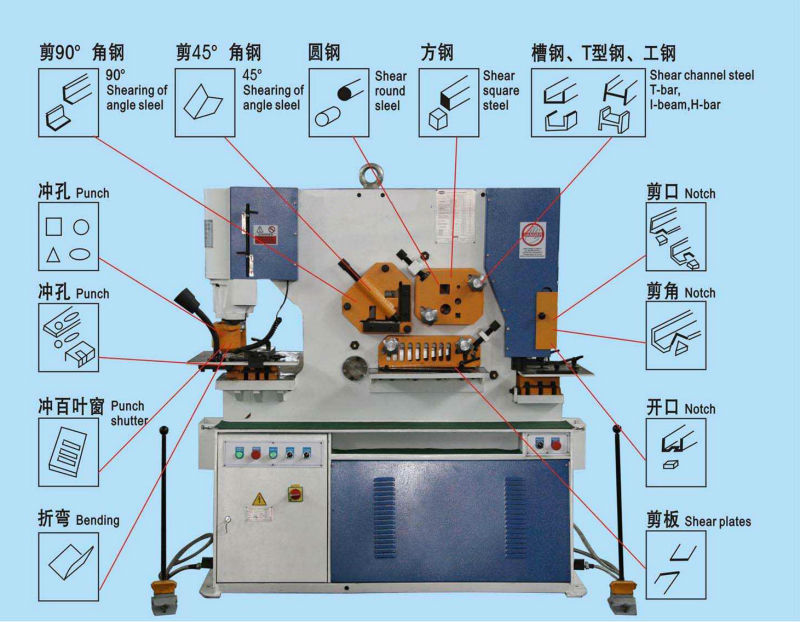

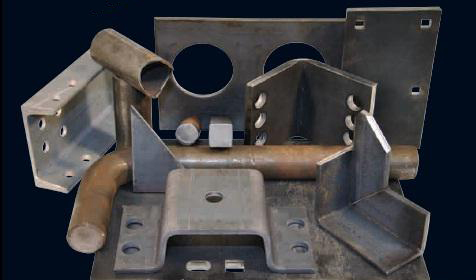

| 1.Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. |
| 2. Accurl Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come |
| 3. The machine by the European unio CE certification and ISO quality system certification |
2. Hydraulic system: |
| 1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany. |
| 2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance |
| 3. Being able to work under rated load continuously,stable working and high precision. |
3. Machine Blade:: |
| 1. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality. |
4. Electrical system and the safety interlock: |
| 1. Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet. |
| 2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. |
| 3. Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation |
Technical parameters
| Type | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-35 | Q35Y-40 | Q35Y-50 |
| Punching pressure(Ton) | 55 | 75 | 110 | 140 | 180 | 200 | 250 |
| Max.cutting thickness(mm) | 16 | 20 | 25 | 30 | 35 | 40 | 50 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 7 | 8 | 8 | 8 | 8 | 8 | 9 |
| Shearing size of one stroke(mm) | 16×250 / 8×400 | 20×330 / 10×480 | 25×330 / 16×600 | 30×335 / 20×600 | 35×330 / 20×600 | 35×400 / 25×700 | 40×400 / 30×750 |
| Ram stroke(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Throat depth(mm) | 300 | 355 | 400 | 600 | 600 | 600 | 600 |
| Punching thickness(mm) | 16 | 20 | 25 | 30 | 35 | 35 | 40 |
| Max.Punching diameter(mm) | 25 | 30 | 35 | 38 | 38 | 40 | 40 |
| Power of main motor(KW) | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Overall dimension (L×W×H)(mm) | 1640×730×1770 | 1860×800×1900 | 1900×810×1900 | 2860×1040×2300 | 2860×1040×2300 | 2970×1240×2350 | 3000×1440×2450 |
| Weight of machine(kg) | 1750 | 2400 | 4800 | 6350 | 6500 | 9200 | 12800 |
H,Channel,Angle need special oder.
| shape | round | square | angel with same side | T beam | H | I beam | ||
| 90°shear | 45°shear | 90°shear | 45°shear | |||||
| Q35Y-16 | 45mm | 40*40mm | 125*125*12mm | 50*50*5mm | 120*120*12mm | 60*60*8mm | 126*74*5mm | 126*53*5.5mm |
| Q35Y-20 | 50mm | 50*50mm | 140*140*12mm | 50*50*5mm | 140*140*12mm | 70*70*10mm | 160*86*6mm | 160*60*6.5mm |
| Q35Y-25 | 60mm | 50*50mm | 160*160*14mm | 50*50*5mm | 160*160*14mm | 80*80*10mm | 200*102*9mm | 210*75*9mm |
| Q35Y-30 | 65mm | 55*55mm | 180*180*16mm | 60*60*6mm | 180*180*16mm | 80*80*10mm | 280*124*10.5mm | 280*86*11.5mm |
| Q35Y-35 | 70mm | 60*60mm | 200*200*18mm | 60*60*6mm | 200*200*18mm | 80*80*10mm | 300*13mm | |
