| 電圧: | 380ボルトまたは220ボルト/ 60 ｈｚ/3 p (またに応じてあなたのローカル電圧) | 原産地: | 中国(本土) | 銘柄: | teyun | モデル番号: | YSK-200T | 重量: | 9500キログラム | 力(W): | 15kw | CNCまたはない: | CNC | 保証: | 1 | 条件: | 新しい | 認証: | iso9001 | 次元(L*W*H): | 1650 × 1050 × 2380ミリメートル | 動力源: | 油圧 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | ユーザー定義 | 品質: | 高品質 | 操作: | 油圧 | パッキング: | 木製梱包 | 配信: | 時間通りに | ノイズ: | 低ノイズ | 手渡し: | 簡単にハンドル | 制御: | 電気 | ライフ: | 長寿命 |
包装
| 包装: | 木製梱包または他の |

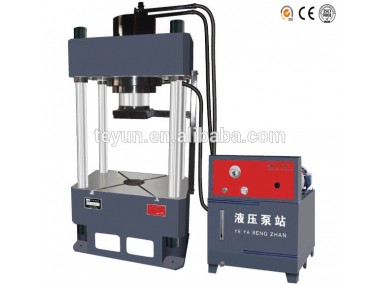

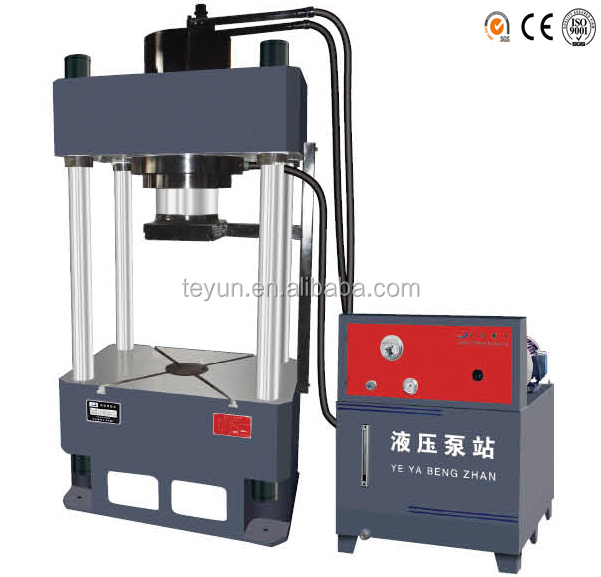

Four Column Hydraulic Press 200 Tons OR 200Tons Hydraulic Press Machine
Specifications
1.Hydraulic Press for CE & SGS
2.Bosch hydraulic system
3.Low noise & high speed
4.High Quality
5.High Safety Protection
6.Easy to operation
Product Description
1.The Machine of Whole structure and Characteristics: |
| 1. YSK Series C-Type High Speed Press is one of the new generation of plate process and developed by Teyun. C-frame design for large operating spaces - suitable for automatic operations forming, punching, bending,straightening and multi-press assemblies to form automatic production line. |
| 2. Totally European design,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material. |
| 3. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots. |
4. The entire equipment be totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety |

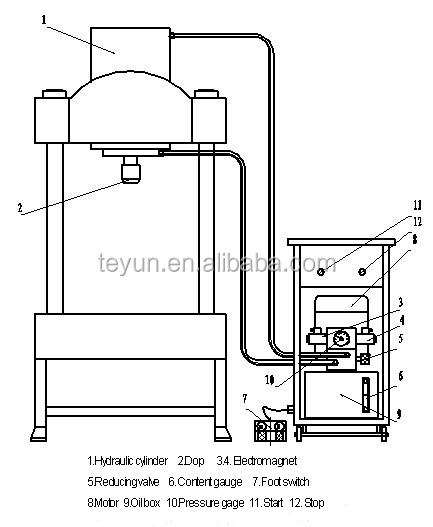

1. Hydraulic System and High-speed Cylinder: |
| 1. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise. |
| 2. Main cylinder is specially designed for high velocity, motor uses less power, high ascending and descending speed, increased efficiency. |
| 3. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany |
| 4. Piston has been heat treated and precision ground finished, uses high quality, imported oil seals & packing; high wear resistance and durability. |
| 5. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly. |
| 6. All pipes, flange and joint with vibrations proof and leakage proof design and setting . |
2. Electrical system and the safety interlock: |
| 1. Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS brand. |
| 2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. |
| 3. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation. |
3. Ram structure: |
| 1. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain. |
| 2. The Machine Adjustable stroke control, Pressure regulator and gauge, allows to limit the ram pressure. Can move the ram up slowly,which allows the operator to control work piece conveniently. |
| 3. Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest. |
4. Presses control system: |
| 1. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic. |
| 2. selecor switch modes of operation: jog (setup) and run (cycle). |
| 3. PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds. |
| 4. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe. |
| 5. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA. |
6. Dual control You can selec to use: a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop. b) movable single-hand pedal switch . |
7. Optional touch screen terminals offer:
a) Data storage of mould(s) and manufacturing conditions.
b) Reduced mould replacement time and calibration, fabrication requirements.
c) Programmable memory for working conditions, displays pressure, stroke, spend data, etc; one cycle process sequence. |
1. We use the strong steel tray, protect the machine and can be easily used forklift to unloading machine.
2. We provide free the entire Marine insurance by customer requirement, avoid machine damage damage to the customer!
Our Services
1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter wher are you.
2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywher
Company Information
Nanjing TeyunMachinery Manufacturing Co.,Ltd. is located in Nanjing city of Lishuimingjue Industrial Park, away from Nanjing Lukou International Airport, a half hour city circle, adjacentto Shanghai Nanjing high-speed, Nanjing Hangzhou high-speed, 104 State Road, Ning high-speed exit only 28 kilometers, highway 341 runs through the industrial park, with convenient transportation.
Nanjing Teyun Machinery Manufacturing Co., Ltd. is specialized in the production of Q43 series crocodile shearing machine, hydraulic metal baler,non metal hydraulic baler, hydraulic cutting machine seriesmachinery and many other. Many fields widelyin steel, recycling processing industry, metallurgyindustry etc..
There are all kinds of mechanical blade, mold, roller, disc slitting blades, theblade, cutting machine blade, cuttingblade, blade, air pressure, packing and sealing blade, jelly, leather blade, diecutting knife, knife, cutter knives, knife plate,strip, special-shaped blade and round cutter,flat circular knives are sold to large and medium-sized steel, metallurgy, chemical industry, papermaking, plastics, rubber tire factory and various packaging industry: our main products.At the same time, we recently also launched a hard alloy blade series. Production of metallurgical HSS circular knife, H13, LD high-precision slitting machine cutting blade series known throughout the country, some products have reached the international level, and random bed supporting exported to Southeast Asia, Europe and the United States and other overseas areas.
The company has strong technical strength,advanced equipment, perfect technology, develop their own "pragmatic innovation, pioneering and enterprising" spirit.Now the company isactively using CAD, CAM, CAPP technology, increasing new product technology,part of the productof the package has beenexported to Southeast Asiaand the surroundingarea, has been unanimously praised by users.
Our company will further rely on science and technologyto develop new products, new projects, and continuously improve product quality.We have always adhered to "promote the innovation of communication, cooperation to create value" purposes. Warmly welcome new and old customersletter calls business negotiations!
