| 原産地: | 中国(本土) | 銘柄: | 復興 | ドライブの種類: | 電気 | 適用: | 医学, 化学薬品, 食物 | モデル番号: | FQ-4800 | 自動等級: | 自動 | 包装材料: | プラスチック | 包装タイプ: | フィルム | タイプ: | マルチファンクション包装機 | 機能: | 切り開くこと | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | によると、 顧客のニーズ |

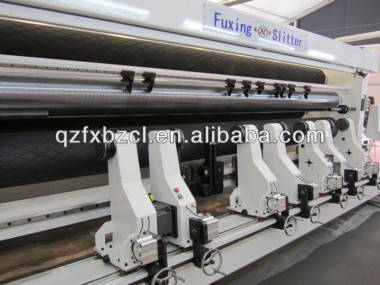

We recently develop a new classic FQ-4800 slitting machine.The control panel can move.Unwinding with double motors.Rewinding with horizontal moving and swing function controlled by accurate hydraulic system.This machine is with the features of humanized control panel,good unwinding tension control,safety and reliability for loading and unloading,good rewinding synchronism,and low noise etc.
Upgoing structure,easy film threading and convenient operation.
imported configuration makes reliable quality.
Control System:Germany Siemens / Japan Mitsubishi controlling system with good stability and high accuracy.
Slitting Way: razor or circular knife.
Main specifications
Material:CPP ,BOPP, PET package material,Aluminum metallized and so on.
Material thickness:10μm-75μm
Unwinding Width:max.4700mm
Slitting width:300mm-2200mm
Slitting speed:Normally 500m/min-600m /min
Unwinding Diameter:max.Φ1000mm
Rewinding Diameter: max.Φ850mm
Rewinding Station: 8 stations
We have Program of Digital Display slitting Fixing Position and Adjusting the knife.once make sure the first knife position,then enter the other width of the film you want to slit into the PLC, so other knife position can be calculated automatically.
