• 高速boppフィルムスリッター機-プラスチック打抜き機
    商品番号: 10760410
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: 復興 モデル番号: FQ-3000
    評価される力: 11000

    包装

    包装: によると、 顧客のニーズ

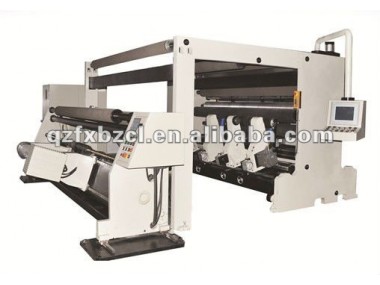

    We recently develop a new slitting machine with edge rewinder and upgoing frame.It’s a new multi-function slitting machine with Control panel can move,unwinding with motor and can turn up and down.This edge collection not take space,and not affect the operation.This machine is with the features of humanized control panel,safety and reliability for loading and unloading on unwinding,etc.

    Characteristics:

    Upgoing structure,easy film threading and convenient operation.

    imported configuration makes reliable quality.

    Control System:Germany Siemens controlling system with good stability and high accuracy.

    Slitting Way: razor cut or circular knife.

    Main specifications(Made at client's request)

    1. Unwinding width:600mm-2800mm
    2. Rewinding width:300mm-2100mm
    3. Slitting speed:Normally 550m/min-600 m/min
    4. Unwinding Diameter:max.Φ1000mm
    5. Rewinding Diameter: max.Φ850mm
    6. Material thickness:10μm-75μm
    7. Rewinding Station: :as normal from 2 to 9stations,or follow clients'demands

    DSC_0097.jpg DSC_0098.jpg -1.jpg
