| 原産地: | 中国(本土) | 銘柄: | 信封 | ドライブの種類: | 電気 | 適用: | 食物, 化学薬品, 医学 | モデル番号: | Fq-3000 | 自動等級: | 自動 | 包装材料: | プラスチック | 包装タイプ: | フィルム | タイプ: | マルチファンクション包装機 | 機能: | 切り開くこと | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | によると、 顧客のニーズ |

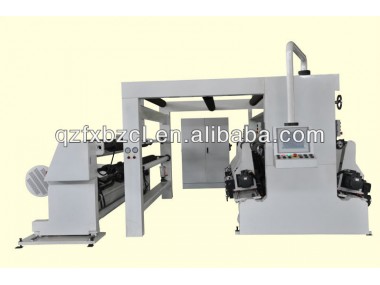

We recently develop a new slitting machine with edge rewinder and upgoing frame.It’s a new multi-function slitting machine with Control panel can move,unwinding with motor and can turn up and down.This edge collection on the beam not take space,and not affect the operation.This machine is with the features of humanized control panel,safety and reliability for loading and unloading on unwinding,etc.
Upgoing structure,easy film threading and convenient operation.
imported configuration makes reliable quality.
Control System:Germany Siemens/Japan Mitsubishi controlling system with good stability and high accuracy.
Slitting Way: razor or circular knife.
Main specifications
Material:CPP ,BOPP, PET package material,Aluminum metallized and so on.
Material thickness:10μm-75μm
Unwinding Width:max.2900mm
Slitting width:300mm-2200mm
Slitting speed:Normally 500m/min-600m /min
Unwinding Diameter:max.Φ1000mm
Rewinding Diameter: max.Φ850mm
Rewinding Station: 6 stations
We have Program of Digital Display slitting Fixing Position and Adjusting the knife.once make sure the first knife position,then enter the other width of the film you want to slit into the PLC, so other knife position can be calculated automatically.
