    新しいproduvt自動小さなボトル洗浄充填とキャッピングmachineZHCXGF6000-おおう機械
    商品番号: 13066375
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 220ボルト/380ボルト 原産地: 中国(本土) 適用: 商品, 化学薬品, 食物, 飲料, 医学
    ドライブの種類: 電気 銘柄: zhonghuan モデル番号: ZHCXGF12-12-5 3000
    重量: 1000〜2500キログラム 自動等級: 自動 包装タイプ: ボトル
    タイプ: 蓋付け機 認証: iso9001 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため
    包装材料: 条件: 新しい 次元(L*W*H): 2266*1200*1841
    力: 3kw 素材: 316ステンレス鋼 スピード: 6000ボトル毎時
    操作: タッチスクリーン タイプ: 包装ライン

    包装

    包装: woodencase

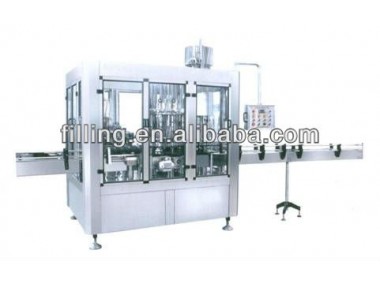

    Automatic bottle washing filling capping machine

    Feature( Automatic bottle washing filling and capping machine):

    The Automatic bottle washing filling and capping machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity. On the bases, the filling parts of the machine can be changed into filing methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plasticcap can be adopted. The machine is an idea-preferred equipment for beverage makers.

          新しいproduvt自動小さなボトル洗浄充填とキャッピングmachineZHCXGF6000

    Technical Parameter( Automatic bottle washing filling and capping machine)



    Model

    CXGF12-12-5

    CXGF16-16-6

    CXGF18-18-6

    Washing heads

    12

    16

    18

    Filling heads

    12

    16

    18

    Capping heads

    5

    6

    6

    Production capacity

    3000 b/h(500ml)

    6000 b/h(500ml)

    8000 b/h(500ml)

    Motor power

    3KW

    3KW

    3KW
