| 原産地: | 中国(本土) | 銘柄: | zhonghuan | ドライブの種類: | 電気 | 適用: | 医学, 飲料, 食物, 商品, 食品、化学、化粧品 | モデル番号: | YG-8 | 包装材料: | 金属 | 自動等級: | 自動 | 包装タイプ: | 木製包装 | タイプ: | 蓋付け機 | 条件: | 新しい | 力: | 1.5kw | 使用法: | インナー | タイプ: | 特別 |
包装
| 包装: | 木製の包装 |
Introduction

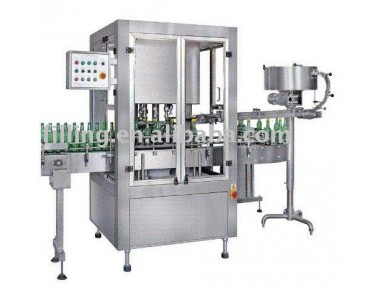

This machine is especially designed for cylinder bottles to lock plastic interior and exterior caps.It can also be used for recovery bottles, stable and simple operating.
This machine is designed well, automatically feeding and sorting caps, besides, it has already equipped the device for removing inverse caps.Features:
| Power supply | AC220V; 50Hz (or according to client’s voltage requirement) |
| Power | 1.5kW |
| Weight of machine | 680 KGS |
| Suitable container size | height diameter 80mm-280mm Φ30mm-Φ100mm |
| Production Capacity | Capping heads Capacity 6 heads 4800 bottles/hour 8 heads 6000 bottles/hour |
| Suitable cap size | diameter height Φ12mm-Φ50mm 15mm-50mm |
| Machine outer dimension(L×W×H) | 2000mm×1200mm×2300mm |
| Manipulators: | 8 heads |
| Suitable container diameter : | 40mm~100mm |
| Suitable bottle height: | 80mm~280mm |
| Production capacity : | ≤ 6000bottles/hour |
| Suitable cap diameter: | 17mm~35mm Suitable interior cap diameter : 12mm~35mm |
| Suitable cap height: | 10mm~30mm |
| Power supply: | AC220V ; 50Hz |
| Power : | 3 kW |
| Machine dimension(L×W×H) : | 2000mm×1100mm×2200mm |
| Vacuum source : | 6.67×10-2 Pa Air-out speed : 15 L/S |
