| 電圧: | 220ボルト/ 380ボルト | 原産地: | 中国(本土) | 適用: | 食物, 医学, 商品, 化学薬品, 飲料 | ドライブの種類: | 電気 | 銘柄: | zhonghuan | モデル番号: | ZHTBS02 | 重量: | 750キログラム | 自動等級: | 自動 | 包装タイプ: | ボトル | タイプ: | ラベル貼り機 | 認証: | iso9000 | 包装材料: | 木 | 条件: | 新しい | 次元(L*W*H): | 3000ミリメートル* 1200ミリメートル* 1600ミリメートル | 力: | 3kw | ラベリング速度: | 0〜26メートル/分 | 機能: | ダブル辺ラベリング | plc: | seimens |
包装
| 包装: | 木製梱包 |

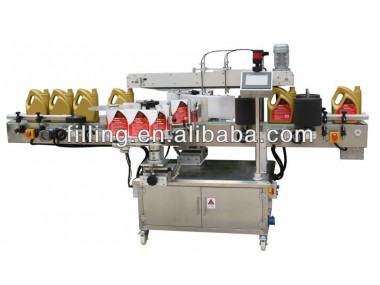

Automatic Adhesive Front and Back Labeling Machine
Product Description
1.Double side labeling for rectangular, square bottles, and elliptical bottles.
2.Controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
3.With volume of 0 to5L.
4.Labeling speed range : 0~26 meter/minute
Major Characteristics (Front and Back Labeling Machine)
1.This labeling machine is suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other lines.
2.Double side labeler for rectangular bottles and square bottles. It is automatically controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
3.If there is no bottle, it will not label. More than ten groups of labeling parameters can be memorized.
4.The specifications can be easily changed. Servo motor helps to realize closed-loop control. It has advantages like low malfunction rate and high efficiency as well as fast speed.
Main Performance Parameter (Front and Back Labeling Machine)
1.Power supply : AC220V ;50Hz ( or according to client voltage requirement)
2.Power : 3kw
3.Labeling speed range : 0~26 meter/minute
4.Suitable label roll inner Diameter size : Diameter75mm
5.Suitable label roll outside Diameter size : Diameter350 Maximum
6.Standard label high size : 300mm
7.Maximum label high size : 300mm
8.Machine weight : 750kg
9.machine dimension ( L×W×H):3000mm×1200mm×1600mm
