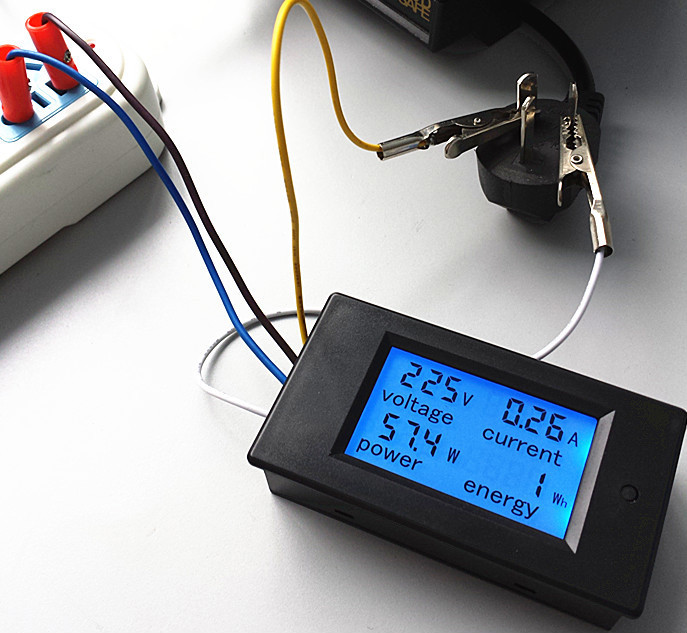

New AC80~260V 0~20A 4 in 1 LCD Digital Combo Panel Meter Volt Amp Power Watt Hour

Features:

-      Electrical combo meter measurement function (voltage, current, power, watt hour)

-      Overload alarm function (over power limit the backlight and power value blinking)

-      Power alarm preset function (can set up power alarm value)

-      Watt Hour values clear function

-      Blue LED Backlight ON / OFF function.

-      Power-off data save function

-      Large-screen LCD display (display voltage, current, power, watt hour at the same time)

-      Must use current transformer (included)

Specification:

-      Operating Voltage: AC 80~260V

-      Voltage Measuring Range: AC 80~260V (display format: 80~260V)

-      Current Measuring Range: 0~20A (display format: 0.00~19.99A)

-      Rated Power: 0~4.5kW (display format: <1kW 0.0~999.9W , >1kW 1000~4500W , >10kW 10.0~22.0W)

-      Energy Measuring Range : 0~9999KWh (display format: <10kWh 0~9999Wh , >10kWh 10~9999kWh)

-      Operating frequency: 45~65 Hz

-      Measurement accuracy: 1 class

-      Wire Required: wiring sequence can’t be wrong, current can’t over 20A

-      Dimensions: 89.6mm(W) x 49.6mm(H) x 24.4mm(D)

-      Cutout Dimensions: 84.6mm(W) x 44.6mm(H)

Package:

1 x (4 in 1) AC Digital LCD Combo Panel Meter (wires not included)
