原産地: | 中国(本土) | 銘柄: | eshinede | モデル番号: | EB39082447583D01 | 実用温度: | - 10度〜65度 | ジスプレー体: | デジタルだけ | 次元: | 30 × 10 × 8ミリメートル | 測定範囲: | dc0-100v | 色: | 参照画像 |
包装
包装: | 安全ポリ袋 |

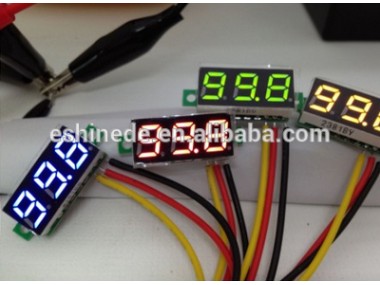

New Mini 0.28" Volt Meter DC 0-100V DC Green Digital Voltmeter LED Panel Power Monitor Red/blue/green/yellow optional Good
Product Description
Features:
Dimension:3010x8mm(not including mounting ears)
Measuring range:DC 0~100V three-wire access
Operating voltage:DC 7.0~30V
Measurement accuracy:1 %(+/- 1 digit)
Refresh Rate:about 500mS/times
Display:Three 0.28 " LED digital tube
Display Color:Green
Operating Temperature:-10 °c ~ +65 °c
Wiring:
Red: Power Supply +,(7.0~ 30V DC)
White: Measure Voltage +,(0~ 100V DC)
Black: Power Supply -, Measure Voltage -
Color:
Red/blue/green/yellow optional
Package Include:
1 x Digital Voltmeter Panel
