| 原産地: | 中国(本土) | 銘柄: | xcmg | モデル番号: | GR100 | 重量: | 7000キログラム | 条件: | 新しい | 認証: | iso9001 | 次元(L*W*H): | 6880*2375*3150ミリメートル | 逆の速度(km/h): | 25 | 前方速度(km/h): | 39 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | ヌード |

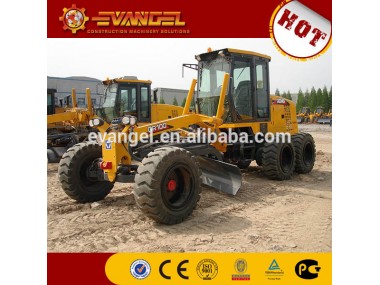

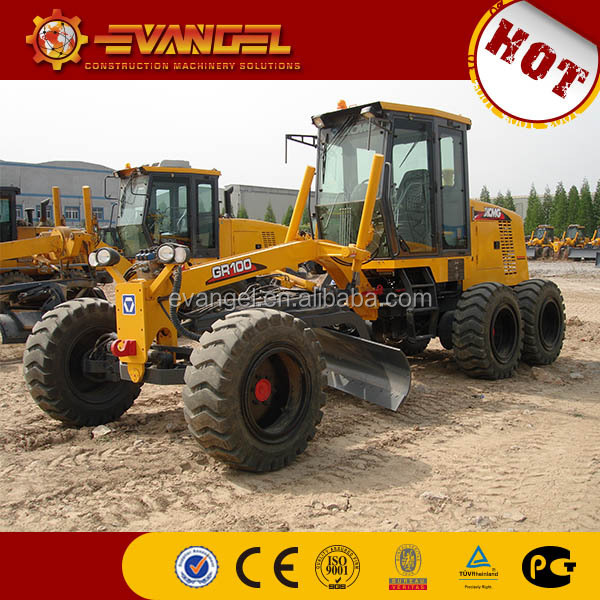

China mini motor grader for sale XCMG Brand with price
1.Demension(LxWxH): 68802375x3150mm
2.Max. Gradeability: 20%
3.High quality
Product Description
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electrohydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the threesection driving axle which is provided with the NOSPIN selflocking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
Main Technical Specification
GR100 | |
| Basic specification | |
| Engine model | 4BT3.9 |
| Rated power/speed | 75/2400kw/rpm |
| Dimension(LxWxH) | 6880×2375×3150mm |
| Operating weight(Standard) | 7000kg |
| Performance specification | |
| Travelling speed ,forward | 5102039km/h |
| Travelling speed ,reverse | 825km/h |
| Tractive force(f=0.75) | 41.6KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 350KPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.31.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | |
| frame articulation angle | ±27° |
| Min. turning radius using articulation | 5.9m |
| Biade | |
| Maximum lift above ground | 300mm |
| Maximum depth of cutting | 350mm |
| Maximum blade position angle | 45° |
| Blade cutting angle | 28°70° |
| Circle reversing rotation | 120° |
| Moldboard width X height | 3048×500mm |
