| 原産地: | 中国(本土) | 銘柄: | Elaiter | 材料: | 炭素鋼、ステンレス鋼304、304L、316、316L、410 | サイズ: | 16、25、38、50、76、100mm | 直径: | 5/8 "、1 "、1.5 "、2 "、3 "、4つ" | 適用: | 真空の調整するか、または分離はまたはまたは蒸留か冷却塔吸収する |
包装
| 包装: | パレット、木の場合へのカートンまたは織り方袋。 |

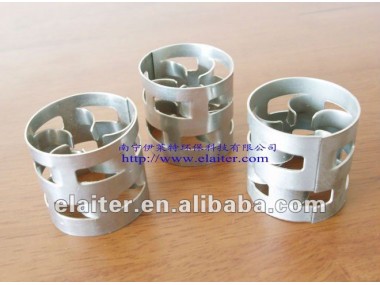

metallic pall ring:
Carbon Steel pall ring, CS pall ring, Carbon Steel pall ring, Stainless steel pall ring, SS304 pall ring, SS304L pall ring, SS316 pall ring, SS316L pall ring, SS410 pall ring.
metallic pall ring is one of the most common and well-known packing, its structure improves distribution of gas-liquid and its efficiency can be improved above 50% and only has half of pressure dro compared with Raschig ring.
metallic pall ring Features:
Pall ring has some advantages such as lower pressure drop, big flux, high efficiency, which gold credit packing has better efficiency and lower pressure dro and better distribution of liquid compared with common pall ring.
Application of metallic pall ring:
metallic pall ring can be applied to various of device of isolation, absorption, adsorption, common decompression such as Toluene separation, Ethylbenzene separation, Isooctane separation and desulfurization System etc.
Material: Stainless steel, carbon steel, aluminum, bronze, 304L, 316L, and other alloy.
Technical data of metallic pall ring:
Diameter (mm) | Dimension d×h×δ (mm) | Specific surface area (m2/m3) | Void volume(m3/m3) | Dry packing factor ( m-1 ) | Heaping number (n/m3) | Heaping weight (kg/m3) |
Φ16 | 16×16×0.3/0.4 | 362/371 | 0.949/0.933 | 423/457 | 214000 | 396/527 |
Φ25 | 25×25×0.5/0.6 | 219/223 | 0.950/0.940 | 255/268 | 51940 | 393/471 |
Φ38 | 38×38×0.6/0.8 | 146/149 | 0.959/0.946 | 165/176 | 15180 | 318/424 |
Φ50 | 50×50×0.8/1.0 | 109/110 | 0.960/0.950 | 124/128 | 6500 | 314/393 |
Φ76 | 76×76×1.2/1.5 | 71/72 | 0.961/0.951 | 80/84 | 1830 | 308/384 |
Φ100 | 100×100×1.8/2.0 | 74/35 | 0.965/.955 | 50/53 | 1200 | 370/371 |
