| 原産地: | 中国(本土) | 銘柄: | jh/oem | モデル番号: | HPD6 | ドライブピン: | ドライブピン | 高速ピン: | 高速ピン |
包装
| 包装: | カラーボックスにあり100個でその後ctnパレットが付いている。 |
MATERIAL:CARBON STEEL

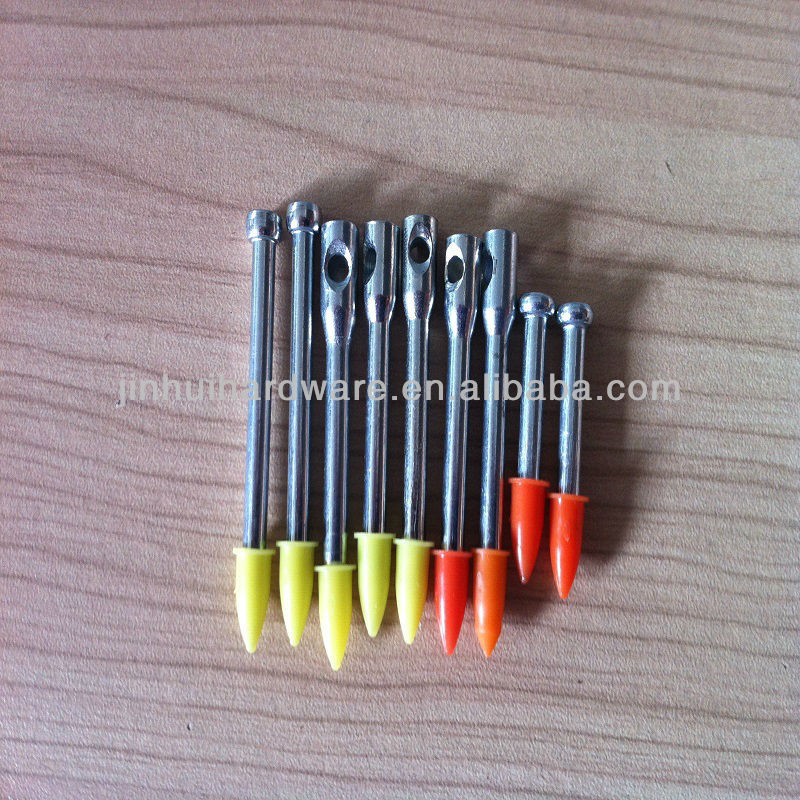

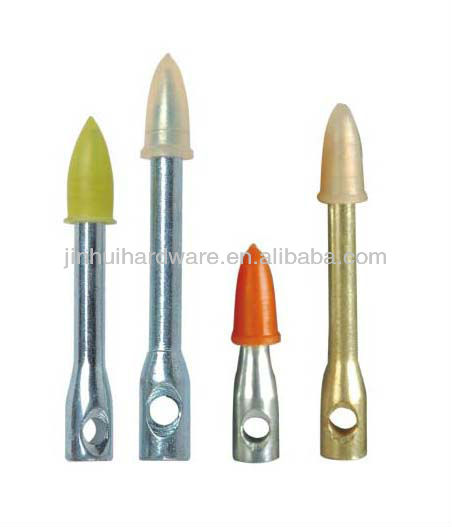

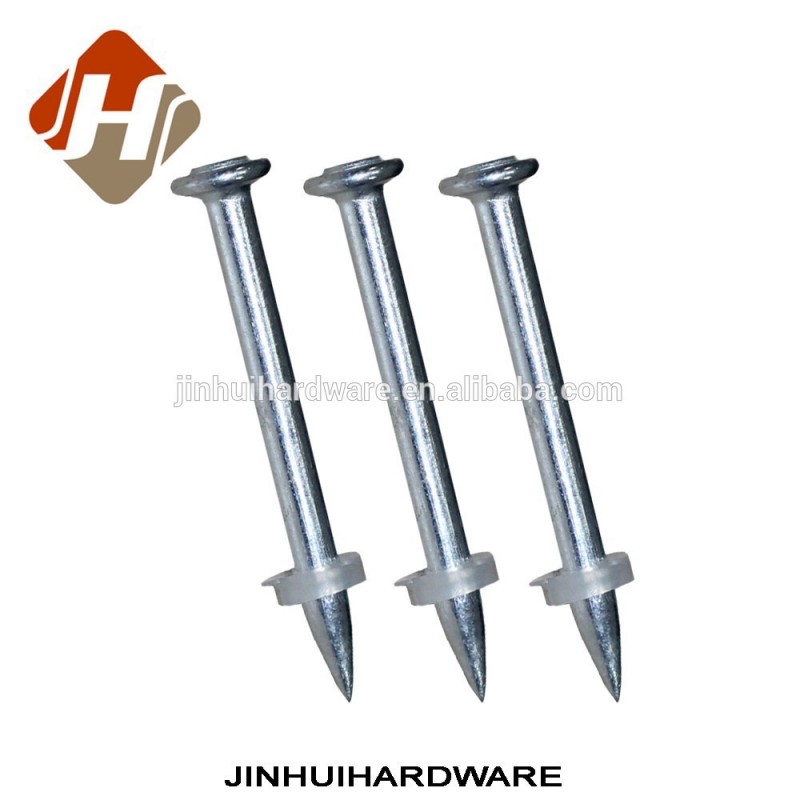

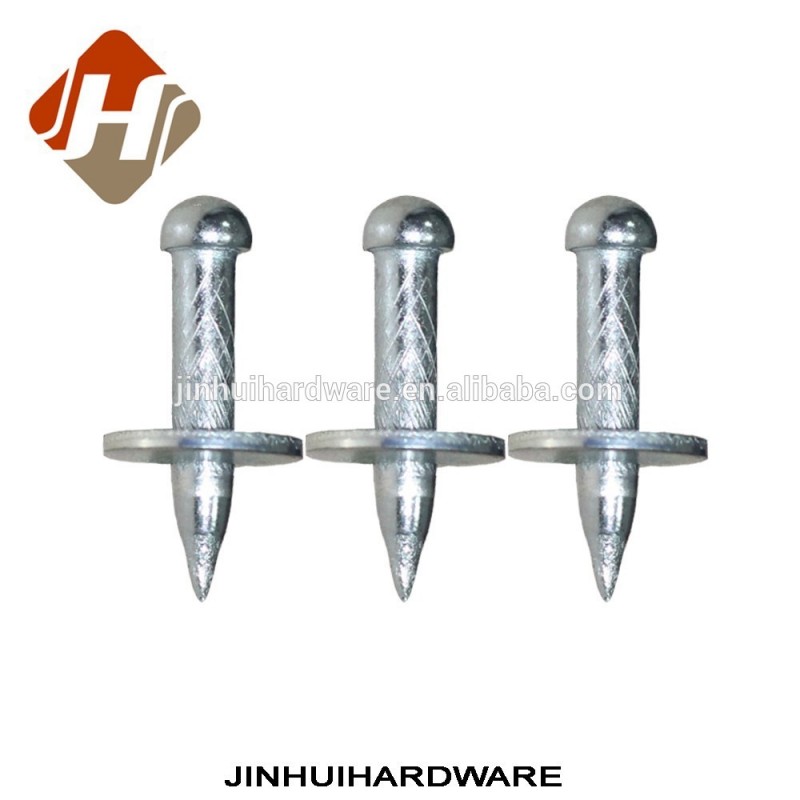

HPD6 Drive Pin
Head Dia:Φ6.0mmShank Dia: Φ3.7mmpoint cap
| Item No. | Model | Spec. | Kg/100pcs |
| 305001 | H6—25P6 | H6×25 | 0.27 |
| 305002 | H6—30P6 | H6×30 | 0.32 |
| 305003 | H6—35P6 | H6×35 | 0.36 |
| 305004 | H6—40P6 | H6×40 | 0.41 |
| 305005 | H6—45P6 | H6×45 | 0.45 |
| 305006 | H6—50P6 | H6×50 | 0.49 |
| 305007 | H6—54P6 | H6×54 | 0.53 |
| 305008 | H6—60P6 | H6×60 | 0.58 |
| 305009 | H6—70P6 | H6×70 | 0.67 |
| 305010 | H6—80P6 | H6×80 | 0.84 |
| 305011 | H6—90P6 | H6×90 | 0.94 |
| 305012 | H6—102P6 | H6×102 | 1.04 |
HEAT TREATMENT
hardness is HRC52-57
Can penetrate Q235 8mm-12mm plate.
PRODUCTS INSRDUCTION:
Drive Pins, similarity with concrete nails, but it use the shot gun shot out. Relatively speaking, the nail fastening better than the artificial construction and easier than other nail construction. Generated by the use of propellant gas emission blanks as power, into the building body of nails. Usually consists of a nail or plastic locator card plus ring ring composition. Positioning ring and plastic collar role is to fix the powder actuated tools barrel shank in order to avoid firing when cornering.
about MANUFACTURE
Automatic and Assembly line

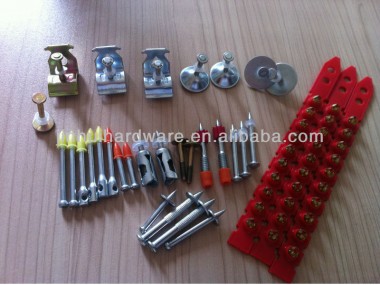

see pis below
welcome to our company and waiting for ur order and long time coopration and develpment together.
