| 原産地: | 中国(本土) | 銘柄: | jh/oem | シャンク径: | 3.8ミリメートルまたは4.0ミリメートル | モデル番号: | zk | タイプ: | 具体的な釘 | 長さ: | 13〜75ミリメートル | 材料: | 鉄鋼 | ヘッド直径: | 6ミリメートルまたは6.3ミリメートル | ドライブピン: | ドライブピン | eveletピン: | eveletピン |
包装
| 包装: | その後ctnsでカラーボックスパレットが付いている |
MATERIAL:CARBON STEEL
ZK6 TYPE
| Head Dia.: 6mm Shank Dia.:3.8mm Eyelet Dia.:3.2mm | ||||||
| ||||||
| Note:1-Accessory:with 6mm dia. plastic hat 2-Shank length can be made by request of customers |
ZK1/4 TYPE
| Head Dia.: 6.3mm/1/4” Shank Dia.:4.0mm Eyelet Dia.:3.5mm | ||||||
| ||||||
| Note:1-Accessory:with 6.3mm dia. plastic hat 2-Shank length can be made by request of customers |
HEAT TREATMENT
hardness is HRC52-57
Can penetrate Q235 8mm-12mm plate.
PRODUCTS INSRDUCTION:

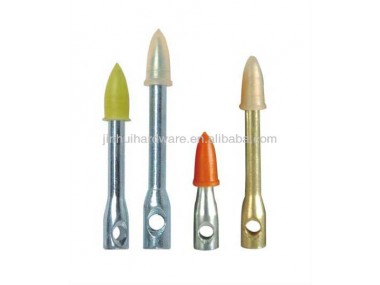

Drive Pins, similarity with concrete nails, but it use the shot gun shot out. Relatively speaking, the nail fastening better than the artificial construction and easier than other nail construction. Generated by the use of propellant gas emission blanks as power, into the building body of nails. Usually consists of a nail or plastic locator card plus ring ring composition. Positioning ring and plastic collar role is to fix the powder actuated tools barrel shank in order to avoid firing when cornering.
about MANUFACTURE
Automatic and Assembly line
see pis below
welcome to our company and waiting for ur order and long time coopration and develpment together.
