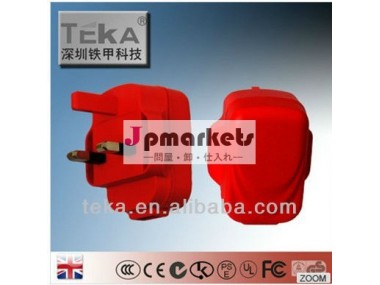

6W Red power USB adapter  UL CUL FCC CCC CE

CHARACTERISTICS:

Compact Size, Easy to Carry; travel adapter

Constant Current Mode and Constant Voltage Mode (CC, CV) .

OUTPUT PROTECTION:

Over-voltage Protection: 120%MIN; Over-current Protection: 120%MIN.

TECHNICAL DATA:

Input voltage: AC100~240V (90~264V).

Frequency: 50/60Hz (47/63Hz).

Output Power: 6W.

Output Voltage: 3~24VDC.

Output Current: 0.1~1.5A.

Voltage-withstanding Test: AC3000V / 5mA.

Line Regulation: ±2%.

Insulation Impedance: DC500V /100 mΩ.

Energy efficiency Level: 5-level Energy Star (V 2.0).

RELIABILITY:

Operating Temperature: 0°C~40°C

Storage Temperature: -20°C~+85°C

Operating Humidity: 5%~95%RH

When the output gets short-circuited, the input power will reduce itself for self-protection.  As soon relieving the short-circuit, the product will recover itself to be normal.  All the product is at high power and at low power dissipation, and meets the standard of Power Supply Energy Star, CEC, ERP, MEPS Class V Level.

RELATIVE TESTING:

1. Burn-in Test:Product shall have to be burn-in for at least 4 hours under the temperature of +40°C±5°Cand the rated load of 80%-100%.

2. Dropping Test: at height of 1 meter, the product falls onto the 20mm-thick hardwood which should be put on the cement base or similar ground without any flexibility.  Each side twice dropping test.

3. MTBF Test: at least 50,000 hours at environment of 25°C, rated input and full load.

SAFETY COMPLIANCE CERTIFICATES:

CULUS (ITE UL60950 )

TUV/GS (ITE EN60950)

CCC (ITE GB4943), CE, CB, VDE, UL, FCC, SAA, PSE, KC, BS, BSMI, etc
