| 出力電圧: | 3-24V | 原産地: | 中国(本土) | 銘柄: | TEKA | モデル番号: | TEKA006B-XXXYYYYZ | 入力電圧: | AC100-240V (90-264V) | 出力電流: | 0.1-1.5A | 出力電力: | 6W | 銘柄: | TEKA | 原産地: | 広東省中国(本土) | 使用法: | 切換えか電源 | 出力電力: | 6W | 出力電圧: | 3-24v | 出力電流: | 0.1-1.5A | 保証の時間: | 2年 | 受渡し時間: | 15仕事日以内にの後の支払を確認しなさい | テスト: | バーンインテストかHeight/MTBF | 証明: | UL、FCC、GS、セリウム、PSE、KC、SAA、等 |
包装
| 包装: | パッキング情報: 1.Small白書箱。 外のパッキングのための2.PEポリ袋3.Cartons。 カートン5.cartonのサイズごとの4.300 PC: および利用できる顧客の供給また変更される430*335*245 6。 |

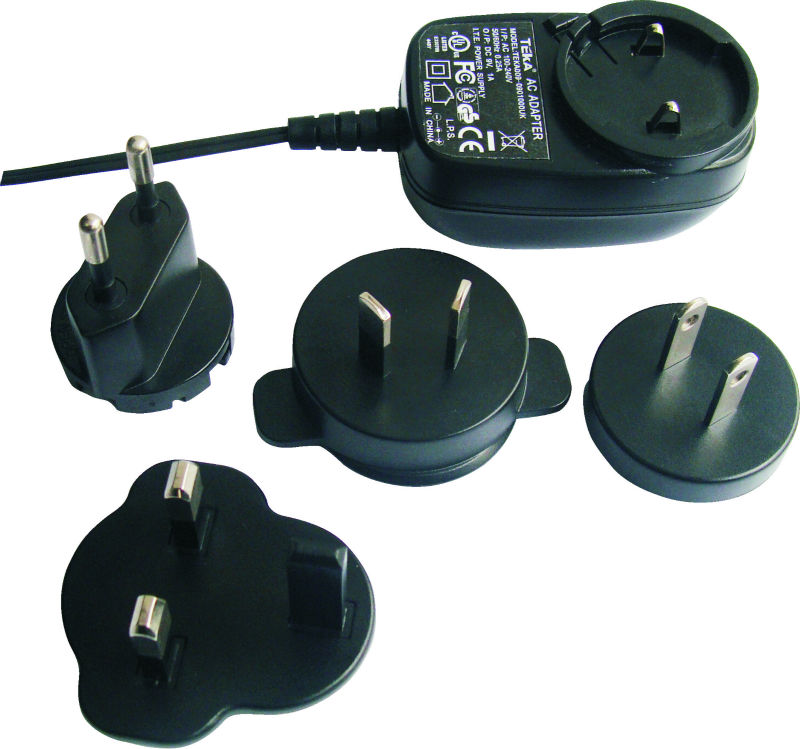

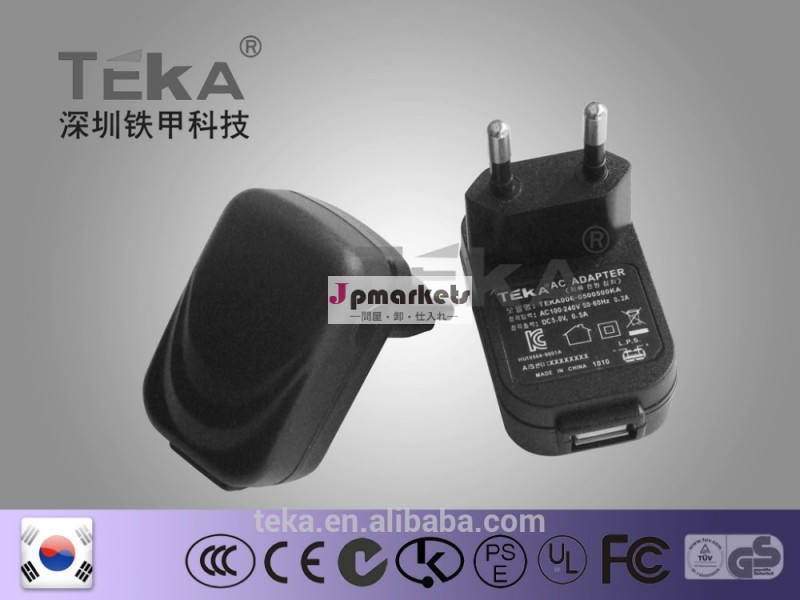

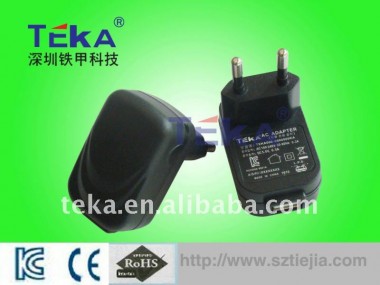

UL,FCC,GS,CE,PSE,KC,SAA,etc approved 3V 2A (KA plug) usb adapter
Product Characteristics
1.A constant current,constant voltage mode.
2.Factory price advantage.
3.certificate approved quality.
4.Brand new components,compact size
5.Smart device surge protection
6.Triple tests before packing ensure the reliable quality
Electrical characteristics:
Input voltage | AC 100-240v(90-264v) |
Output power | 6W |
Output voltage | 3-24V |
Output current | 0.1-1.5A |
Frequency | 50-60Hz(47/63HZ) |
Line regulation | ±2% |
Load rang | ±5% |
Dielectric Strength test | AC 3000V/5MA |
Insulation resistance | DC 500V/100MΩ |
Reliability
1. Operating temperature:0-40°C
2. Storage temperature:-20-85°C
3. Operating Humidity: 5-95%RH
4. The input power will decrease and no damage when the output short-circuit,and it will self-recovery when the fault condition removed.
5.High power and low power consumption, in line with the power supply energy star CEC,ERP,MEPS Class V energy efficiency standard of green power.
Protection:
Over current protection(120% min)
Over voltage protection(120% min)
Short circuit protection
Certification
Our products have passed the UL,CUL,FCC,GS,CE,CCC,PSE,SAA,EK,KC,CB,BS, and BSMI Certification.
Test:
1.Burn-in test:power supply was burn -in for 4 hours under normal input and 80-100% rated load at 40°C±5°C.
2.Height test: the height will be 1 meter,and the product will fall off on the hardwood with the thickness of 20mm,and the hardwood shall be put on the base of the cement,or on the ground without flexibility. Apply two times on all surface.
3.MTBF:the MBTF shall be at least 50,000 hours at 25°C, full load and input condition.
Product size:
Product model | Net weight/pc | Product size |
6W wall mount SR CCC UL PSE | 65g | 58*37*24 |
6W wall mount USB CCC UL PSE | 40g | 60*36*24 |
6W wall mount SR SAA | 65g | 58*40*34.5 |
6W wall mount USB SAA | 40g | 60*40*34.5 |
6W wall mount SR EU KC | 68g | 58*37*25 |
6W wall mount USB EU KC | 43g | 60*37*25 |
6W wall mount SR BS | 74g | 58*49*33 |
6W wall mount USB BS | 47g | 58*49*33 |
