製品情報
| 条件: 新しい | タイプ: 一度 | 使用法: 産業 |
| 構造: 水管 | 圧力: ・高低圧pressurevertical油蒸気ボイラ | 様式: 縦 |
| 燃料: 油発火 | 原産地: 中国(本土) | 銘柄: preflyガス産業用蒸気ボイラーの価格 |
| モデル番号: lssガス産業用蒸気ボイラーの価格 | 出力: 蒸気 | 次元(L*W*H): 1000*1000*1500mm- 2300*1800*3400mm |
| 重量: 0.15t-4tガス産業用蒸気ボイラーの価格 | 認証: iso | 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため |
| 産業用蒸気ボイラーの価格: ガス産業用蒸気ボイラーの価格 | 色: 青と白 | 蒸気圧力: 7-10barガス産業用蒸気ボイラーの価格 |
| 蒸気の容量: 100kg/h-2000kg/h | カバー: 炭素鋼やステンレス鋼 | ブランドバーナー: itlay |
| 材料: 100％チタンと鋼ガス産業用蒸気ボイラーの価格 | パッキング: 木製/カートン | ロゴ: prefly |
| 重量: 0.15t-4tガス産業用蒸気ボイラーの価格 |
包装
| 包装: 産業用蒸気ボイラーのガス価格のパッキング: 木製、 カートン。 |

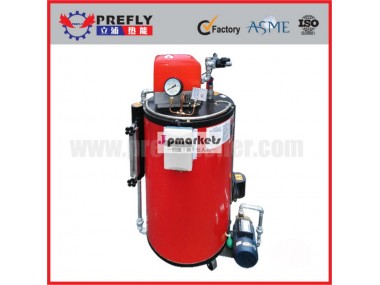

gas industrial steam boilers price
Design structure:
- Designed with water circulates in tubes heated externally by the fire.
- Fuel is burned inside the furnace, creating hot gas which heats water in the steam-generating tubes.
Advantage:
- Safety: with water level, leakage steam, steam pressure control. Make sure boiler working safety.
- Product quality ensured by: hydraulic test, X-ray, non-destructive test.
- Efficient: well insulation and excellent structure.
How to use?
- Built a boiler house.
- Preparing piping as boiler technical data.
- Preparing electricity as required.
- Installed boiler as manual.
- Commissioning boiler as manual.
- Operating boiler.
Application:
Building heat, chemical processing, health care, laundry industrial, paper processing, textiles.
Other model boiler:
1. horizontal oil/gas steam boiler: 500kg/h-20,000kg/h
http://preflyboiler.preview.alibaba.com/product/640597513-213988406/productdetail.html?x_request_uri=/product/213988406/640597513.html
2. vertical fire tube boiler: 100-1000kg/h
http://preflyboiler.preview.alibaba.com/product/626958776-213988409/productdetail.html?x_request_uri=/product/213988409/626958776.html
3. wood and coal fired boiler: 1000-20,000kg/h
http://preflyboiler.preview.alibaba.com/product/640600080-213988413/productdetail.html?x_request_uri=/product/213988413/640600080.html
4. electric steam boiler:3kw-1440kw
http://preflyboiler.preview.alibaba.com/product/629512591-213988416/productdetail.html?x_request_uri=/product/213988416/629512591.html
Technical data:
| BOILER SPECIFICATION | Unit | LSS0.05-0.7-Y.Q | LSS0.08-0.7-Y.Q | LSS0.1-0.7- Y.Q | LSS0.2-0.7-Y.Q | LSS0.3-0.7-Y.Q | |
| Basic Info | Max. pressure | Bar | 7 | 7 | 7 | 7 | 7 |
| Steam capacity | Kg/h | 50 | 80 | 100 | 200 | 300 | |
| Saturated temperature | °C | 175 | 175 | 175 | 175 | 175 | |
| Heating surface | M2 | 2 | 3 | 3.8 | 6.2 | 8.6 | |
| Natural gas consumption | M3/h | 3 | 4.8 | 6 | 12 | 18 | |
| Diesel consumption | Kg/h | 3.4 | 5.4 | 6.8 | 13.6 | 22.4 | |
| Size( L x Wx H) | mm | 10001000x1500 | 11001200x1900 | 12001450x2100 | 12001500x2100 | 14001600x2200 | |
| Main valve | Weight | T | 0.15 | 0.6 | 0.7 | 0.9 | 1.2 |
| Main steam valve | mm | 20 | 20 | 25 | 25 | 32 | |
| Feed water valve | 15 | 15 | 15 | 15 | 20 | ||
| Safety valve | 25 | 25 | 25 | 25 | 40 | ||
| Chimney | 120 | 130 | 150 | 200 | 220 | ||
| BOILER SPECIFICATION | Unit | LSS0.5-0.8-Y.Q | LSS0.75-0.8-Y.Q | LSS1-0.8-Y.Q | LSS1.5-1.0-Y.Q | LSS2-1.0-Y.Q | |
| Basic Info | Max. pressure | Bar | 8 | 8 | 8 | 10 | 10 |
| Steam capacity | Kg/h | 500 | 750 | 1000 | 1500 | 2000 | |
| Saturated temperature | °C | 175 | 175 | 175 | 184 | 184 | |
| Heating surface | M2 | 11.86 | 14.4 | 16 | 20.44 | 34.03 | |
| Natural gas consumption | M3/h | 32 | 47.5 | 62.5 | 93.9 | 152.2 | |
| Diesel consumption | Kg/h | 34 | 51 | 68 | 102 | 136 | |
| Size( L x Wx H) | mm | 17001700x2200 | 18501750x2500 | 19801800x2500 | 21001702x3000 | 23001800x3400 | |
| Main valve | Weight | T | 1.5 | 1.5 | 2.2 | 2.8 | 4 |
| Main steam valve | mm | 32 | 40 | 50 | 65 | 65 | |
| Feed water valve | 20 | 20 | 20 | 25 | 25 | ||
| Safety valve | 40 | 40 | 40 | 40 | 40 | ||
| Chimney | 220 | 250 | 301 | 362 | 400 | ||
Details:
....
