製品情報
| 原産地: 中国(本土) | 銘柄: vovac | モデル番号: Vkl240-29p |
| 理論: 遠心ポンプ | 構造: シングルステージポンプ | 使用法: 水 |
| 力: diselエンジン、 電気 | 標準的なか標準外: 標準 | 燃料: ディーゼル |
| 圧力: 低圧 | 適用: ファームの灌漑、 を消火、 工業用水の供給 | amf: オプション |
| モバイルトレーラー: オプション | インチ: 6インチ | 色: 必要に応じて |
| 保証: 1year/1500hrs | 用法: ファームの灌漑、 を消火、 水の供給 | ブランド: vovac |
包装
| 包装: 合板ケース/container |
仕様
ファームの水ポンプ1)ファームの灌漑2)入口6inch/口5インチ3)流出立方メートル/hの、 ヘッドリフト29m4)供給パイプと継手
2-20inch Farm water pump Powered By Diesel Engine
1)Farm irrigation,water supply
2)Inlet 6inch/outlet 5inch
3)Outflow 240m3/h,head lift 29m
4)Diesel engine driven
5)Spare parts,hose can be supplied
Specifications of 6 Inch Diesel Water Pumps
| Model of Diesel pump set | VKL240-29P (Q=240m3/h H=29m) |
| Usage | farm irrigation/ water supply |
| Outflow | 240m3/h |
| Head lift | 29m |
| Treated Water | fresh water/ river water |
| Diesel Engine | |
| Model | K4100D (OEM Ricardo Diesel Engine) |
| Rated Output/Max output(KW) | 30/33 |
| Rated Speed (r/min) | 1500 |
| Starting Method | 12V DC Electric motor |
| Cooling Method | closed water cooling |
| Governing Method | Mechanic governing |
| Intake Method | natural aspiration |
| Cylinders | 4 |
| Bore/Stroke | 100/115mm |
| Type | closed water cooling,in-line,4 stroke,humid liner,direct injection |
| Water Pump | |
| Model | IS150-125-315 |
| Type | single grade,single suction,centrifugal pump |
| Outflow/head lift | 240m3/h,head lift:29m |
| Suction lift | 7m |
| Shaft Power | 23.1KW |
| Inlet diameter | 150mm(6inch) |
| Outlet diameter | 125mm(5inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | stuffing sealing |
| Control System | |
| Display/Control System | Display oil pressure,charging current,water temperature,oil temperature. |
| Standard Equipments | |
| Diesel engine: 1set | |
| Water pump: 1set | |
| steel mounting base with 8hours working fuel tank | |
| Control panel | |
| Oil filter:1set | |
| Fuel filter:1set | |
| Air filter:1set | |
| Battery:DC 12V*2 | |
| Accessary spare parts | |
| Technic file: 1set | |
| Packing | plywood case |
| Payment Terms | T/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment.When got full payment,we release the full set of Original DOCS. |
| Delivery Time | 20-30 working days after received 30%deposit |
| MOQ | 1SET |

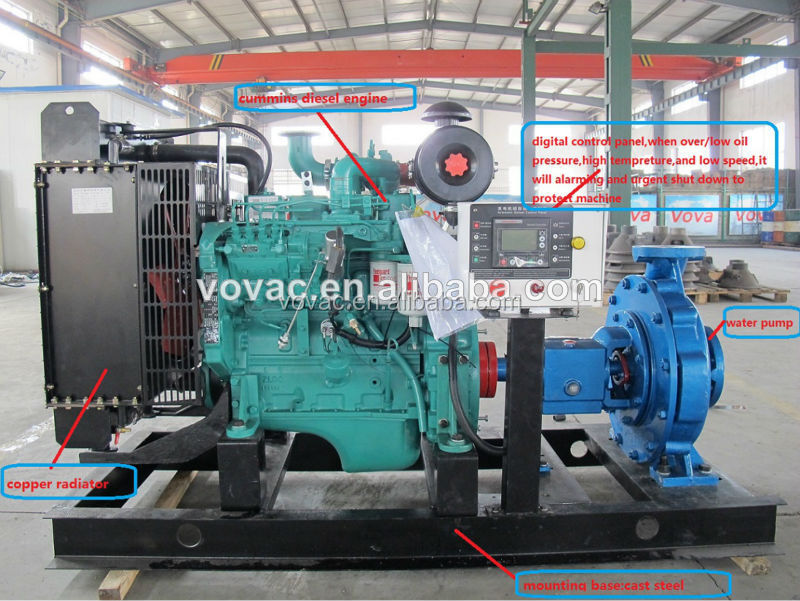

Pictures of 8 inch diesel water pumps (open type and 2-wheels mobile type)
