製品情報
| 条件: 新しい | タイプ: 車輪のトラクター | 車輪によって: 4WD |
| 使用法: 農場トラクター | ドライブの種類: ギヤドライブ | 証明書: CE |
| 銘柄: dexing | モデル番号: del804 | 原産地: 中国(本土) |
| 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため | 色: 赤または青 | hp: 80 |
| タイプ: 4x4の | エンジン: ytoディーゼルエンジン | クラッチ: ダブルアクション |
| ステアリング: 油圧ステアリング | 運転出力軸回転速度: 760/1000( 540/1000) r/min | 重量( キャブ付/タクシーなし): キロ3990/3740 |
| 外形寸法: ミリメートル4396*2038*2810 | マッチしたオプションを実装してい: フロントエンドローダー、 バックホウ、 や馬鍬ディスクプラウ、 トレーラー、 等 |
包装
| 包装: 標準packge、 一つに40hc3台 |
仕様
職業トップ80hpホイールトラクター中国ディーゼルエンジン低燃費各種アタッチメント16f+8rシャトルシフト
Company Information
Henan Dexing Machinery Equipment Co., Ltd. is local in Zhengzhou City, Henan, China. It is professional agricultural tractor supplier, we have more than 10 years' exporting experience, we offer you all typs of agriculture tractors 18~280hp and more than 100 different type tractor implements, our main markets have Australia, South American countries, African, etc, and all products meet international standard.
Product DescriptionProfessional 80Hp Wheel Tractor for 80hp tractor
Features:
1. Be adopted brand engine, large reserve power, low oil consumption, good economic performance, and high in reliability.
2. Hydraulic steering combination meters and combination switch are both good to look and easy to operate.
3. Besides independent double-speed power output, the synchronizing power output is set up; 540, 720, 1000 are optional for the customers.
4. The raiser is equipped with auxiliary oil cylinder, and the raising force is 19kn-25kn, and able to lift various large-scale composite farm implements, and realize the plowing operation by four depth-adjusting modes-force adjustment, position adjustment, force and position adjustment and floating adjustment.
5. Full-closed streamline luxury driving cab, adjustable spring seat, cold or warm air conditioner and complete sound equipment, comfortable driving environment;
6. Be equipped with multi-piece three-position multi-channel valve, also can be equipped with former loading and latter excavation and other engineering tools.
Main Specifications:
| Tractor model | DEL804 | |
| Pattern | 4×4 | |
| Outlook sizemm | Long(Including rear suspension) | 4396(Including pretage) |
| Width | 2038 | |
| High (to air vent) | 2810 | |
| Spread of axies(mm) | 2195 | |
| Front wheel tread (mm) | 1610 | |
| Rear wheel tread(mm) | 1620-2020(Exwork1620) | |
| Smallest gully(mm) | 379(Front under driving axle along) | |
| Changes radius (mm) unilaterally not to apply the brake | 5.6 | |
| Structure quality | Belt cab vehicle typ | 3750 |
| Does not have the cab vehicle type | 3500 | |
Quality assignment | Front wheel belt cab vehicle type | 1640 |
| Does not have the cab vehicle type | 1600 | |
| Trailing wheel belt cab vehicle type | 2350 | |
| Does not have the cab vehicle type | 2140 | |
| Smallest use quality (kg) | ||
| Belt cab vehicle type | 3990 | |
| Does not have the cab vehicle type | 3740 | |
| Counterweight | ||
| First counterweight | Biggest310 | |
| Latter counterweight | Biggest480 | |
| Fixed force of traction (KN) | 19 | |
| Engine model | 4108T82 | |
| Demarcation power (KW) | 60.3 | |
| Files number | 16F 8R (elects to install crawling files) or 8F 4R | |
| Speed range | 0.46-36.9 | |
| Power transmission coupling | Monolithic, the dry type, the butterfly-shaped spring contract, the independent operation, the double-acting type coupling | |
| Gear box | The host vice-speed change shifts gears for the straight meshing wrap | |
| Rear axle of car central rotation | Spiral bevel gear | |
| Differential device | Closed type, 4 planet bevel gears | |
| Differential lock | Meshing model | |
| Latter final transmission | The single stage planet gear type, sets outside the rear both sides | |
| In front of first driving axle central transmission | Spiral bevel gear | |
| First differential device | Closed type, 2 planet bevel gears | |
| First final transmission | A single stage planet gear type | |
| Transfer case | Straight tooth cylindrical gears belt transmission shifting mechanism | |
| Front wheel tire specification | 11.2-24 | |
| Trailing wheel tire specification | 16.9-34/13.6-38(Paddy wheel) | |
| Changes the form | The independent oil duct, the entire hydraulic pressure front wheel changes | |
| Travel brake | The static hydraulic pressure, the disc type, under the human control sets at the footboard | |
| Parking brake | The handle operation, the multi-rubbing surface machinery contracts the oil bath type | |
| Ploughs the deep control mode | The position control, the fluctuation control (elects to install strength position integrated control) | |
| After system biggest lifting capacity (KN) (point of suspension 610m place) | Being bigger than16 | |
| Suspension unit | After three is hanging | |
| Dynamic output speed of spindle (r/min) | Postpositioned free standing 760/1000 | |
| Draw gear form | Suspends the type draw link adjustable, the draw link position | |
All attachments available

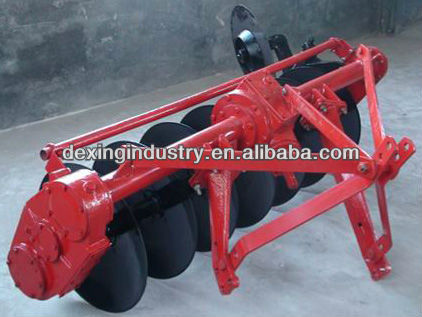

Disc plough, disc harrow, planter, front end loader, backhoe, post hole digger, trailer, etc.
Our Services
Fast, effective one-stop service
FAQ
1. How is the cost performance of the tractor?
Answer: We adopt advanced technology as many other big factories, also we have labour advantages to guarantee competitive price.
2. Is there any discount?
Answer: Discount is according to the quantity you purchase.
3. Is it convenient to visit your factory?
Answer: All of you friends are welcome to visit us, and we like to show our tractors to you on site.
If there is any more question or need, please feel free to ask directly.
