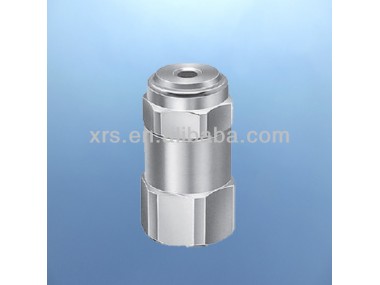

Full cone nozzle ---Sandard angle
Feature design:
- A full cone spray pattern with a round impact area
- spray angles between 43 degree and 106 degree
- They produce a uniform distribution of medium to large sized drops over a wide range of flow rates and pressures.
- Their uniform spray distribution result from a unique vane design, large and easy flow passages and superior spray control design.
- Machined critically, metal nozzles insure correct and dependable perormance with exact sizes. They are ideal for applications requiring complete coverage to certain area.
- The metal nozzles have knock-down cap and vane, can be suitably connected with pipe collection and multi-pie. Under this design way, its working-end (cap and vane) can be knocked down off the nozzle body to be overhauled and cleaned, without knocking down the nozzle body off the pipe.
Common application: exhaust gas scrubbing, quenching and cooling ,fire prevention and fire protection, defoaming, spraying applications
Perfomance data sheet
| Nozzle Inlet Conn. | Capacity Size | Rated Orifice Dia. (mm) | Max. Hole Dia. (mm) | Capacity liters per minute | Spray angle | |||||||||||
| 0.2 bar | 1 bar | 1.5 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | 7 bar | 10 bar | 0.5 bar | 1.5bar | 6 bar | ||||
| 1/8 | 1 | 0.79 | 0.64 | 0.44 | 0.54 | 0.62 | 0.74 | 0.85 | 0.94 | 1.00 | 1.10 | 1.30 | 58° | 53° | ||
| 1.5 | 1.20 | 0.64 | 0.49 | 0.69 | 0.81 | 0.93 | 1.10 | 1.30 | 1.40 | 1.50 | 1.70 | 1.90 | 52° | 65° | 59° | |
| 2 | 1.20 | 1.00 | 0.65 | 0.92 | 1.10 | 1.20 | 1.50 | 1.70 | 1.90 | 2.00 | 2.20 | 2.60 | 43° | 50° | 46° | |
| 3 | 1.50 | 1.00 | 0.98 | 1.40 | 1.60 | 1.90 | 2.20 | 2.50 | 2.80 | 3.10 | 3.30 | 3.90 | 52° | 65° | 59° | |
| 3.5 | 1.60 | 1.30 | 1.10 | 1.60 | 1.90 | 2.20 | 2.60 | 3.00 | 3.30 | 3.60 | 3.90 | 4.50 | 43° | 50° | 46° | |
| 3.9 | 2.00 | 1.00 | 1.30 | 1.80 | 2.10 | 2.40 | 2.90 | 3.30 | 3.70 | 4.00 | 4.30 | 5.10 | 77° | 84° | 79° | |
| 5 | 2.00 | 1.30 | 1.60 | 2.30 | 2.70 | 3.10 | 3.70 | 4.20 | 4.70 | 5.10 | 5.50 | 6.50 | 52° | 65° | 59° | |
| 6.1 | 2.30 | 1.30 | 2.00 | 2.80 | 3.30 | 3.80 | 4.50 | 5.20 | 5.70 | 6.20 | 6.70 | 7.90 | 69° | 74° | 68° | |
| 1/4 | 6.5 | 2.38 | 1.60 | 2.10 | 3.00 | 3.50 | 4.00 | 4.80 | 5.50 | 6.10 | 6.70 | 7.10 | 8.40 | 45° | 50° | 46° |
| 10 | 3.18 | 1.60 | 3.30 | 4.70 | 5.40 | 6.20 | 7.40 | 8.50 | 9.40 | 10.20 | 11.00 | 13.00 | 58° | 67° | 61° | |
| 12.5 | 3.20 | 1.60 | 4.10 | 5.80 | 6.80 | 7.70 | 9.30 | 10.60 | 11.80 | 12.80 | 13.70 | 16.20 | 69° | 74° | 68° | |
| 3/8 | 9.5 | 2.60 | 2.40 | 3.10 | 4.40 | 5.10 | 5.90 | 7.10 | 8.10 | 8.90 | 9.70 | 10.40 | 12.30 | 45° | 50° | 46° |
| 15 | 3.60 | 2.40 | 4.90 | 6.90 | 8.10 | 9.30 | 11.20 | 12.70 | 14.10 | 15.40 | 16.50 | 19.40 | 64° | 67° | 61° | |
| 20 | 4.00 | 2.80 | 6.50 | 9.20 | 10.80 | 12.40 | 14.90 | 17.00 | 18.80 | 20.00 | 22.00 | 26.00 | 76° | 80° | 73° | |
| 22 | 4.50 | 2.80 | 7.20 | 10.20 | 11.90 | 13.60 | 16.40 | 18.70 | 21.00 | 23.00 | 24.00 | 28.00 | 87° | 90° | 82° | |
| 1/2 | 16 | 3.50 | 3.20 | 5.20 | 7.40 | 8.70 | 9.90 | 11.90 | 13.60 | 15.00 | 16.40 | 17.60 | 21.00 | 48° | 50° | 46° |
| 25 | 4.60 | 3.20 | 8.20 | 11.60 | 13.50 | 15.40 | 18.60 | 21.00 | 24.00 | 26.00 | 27.00 | 32.00 | 64° | 67° | 61° | |
| 32 | 5.20 | 3.60 | 10.40 | 14.70 | 17.30 | 19.80 | 24.00 | 27.00 | 30.00 | 33.00 | 35.00 | 41.00 | 72° | 75° | 68° | |
| 40 | 6.20 | 3.60 | 13.10 | 16.50 | 22.00 | 25.00 | 30.00 | 34.00 | 38.00 | 41.00 | 44.00 | 52.00 | 88° | 91° | 83° | |
| 50 | 6.70 | 4.00 | 16.30 | 23.10 | 27.00 | 31.00 | 37.00 | 42.00 | 47.00 | 51.00 | 55.00 | 65.00 | 91° | 94° | 86° | |
