| 原産地: | 中国(本土) | 条件: | 新しい | 銘柄: | xrst | モデル番号: | bb 1/4-ss 10 | 素材: | ss、 316ss、 真鍮 | モデル: | bb 1/4-ss 10 |
包装
| 包装: | 標準的な輸出カートン |

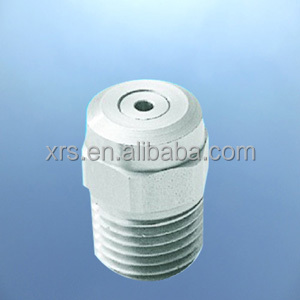

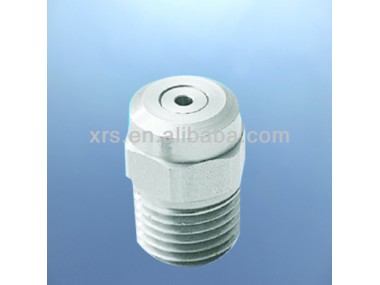

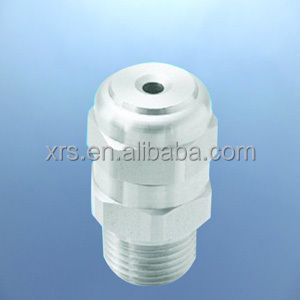

Design features:
- X type vane in nozzle body as a deflectior
- BBG series are three-pieces nozzles, with removable cap and internal helical vane
- BB series are one-piece nozzles with the vane press fitted at the factory
- Midium to coarse droplet size
- Suitable for applications requiring complite coverage
- Male connection, 1/8" to 182", BSPT or NPT
Spray characteristics:
- Spray pattern: full cone
- Spray angles: 43o to 104o
- Flow rates: 0.74 to 37 L/min @ 3 bar
- Midium to coarse drioplet size
Order information:
- Order information: BB 1/4 -SS 10

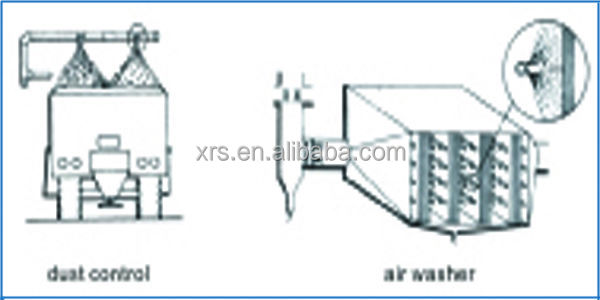

Common applications: Washing and rinsing, Dust control, Gas scrubbing, Quenching and cooling, Fire protecion/Suppression defoaming
Performance Data Sheet
