• Plc制御自動プルボードフィルタープレス機-フィルター出版物装置
    商品番号: 13412224
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380ボルト、415ボルト、440ボルト、460ボルト 原産地: 中国(本土) 銘柄: ディングリ
    製品容量: 3025L/時間 モデル番号: XAMY200/1500-30u 重量: 3970キログラム
    自動等級: 自動 力(W): 5.5kw 保証: 12ヶ月
    条件: 新しい 認証: iso、ce 次元(L*W*H): 5020 × 1880 × 1600ミリメートル
    提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため フィルタープレートサイズ: 1500 × 1500 フィルタープレート材料: ポリプロピレン
    フィルター布サイズ: 1600 × 1600 フィルター布素材: ポリプロピレン繊維 フィルタープレート数量: 49
    フィルター面積: 平方メートル プレートオープンと放電: 自動プルボード 制御: plc
    建設材料: 炭素鋼/ステンレス鋼

    包装

    包装: ビニール袋パッキング

    Automatic Pull Board Filter Press Machine



    Our company supply various series of filter presses, including chamber filter press, plate and frame filter press, stainless steel filter press, lab type filter press, automatic filter press, water washing filter press, cast iron filter press, vertical filter press, etc.



    Introduction of Chamber Filter Press Machine:

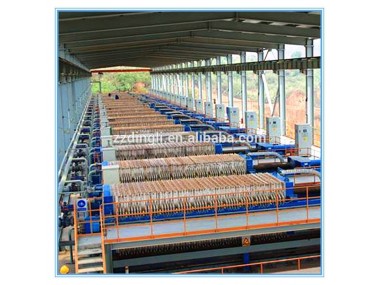

    Automatic filter press is a kind of intermittent pressure filtration machine equipment, applied to various suspension of solid-liquid separation. The separation effect is good, easy to use, suitable for large filtration industry, requires a high degree of automation or centralized control, with filter pressure of 0.6 Mpa. The whole machine is designed with integration of machine, electricity and liquid, can realize automatic pressing, filtering, draining, squeezing, loosening, drawing board, and so on, with a high degree of automation, large production capacity, low liquid content in filter cake, the unit output is high, cover an area of an area small features. Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing and sewage treatment and so on all kinds of solid-liquid separation is required.

    Automatic filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.



    Features of Automatic pull board system:

    Due to the large pressure filter single filter plate are heavier, workers pulling plate unloading is not very convenient, the workload is bigger also. The automatic drawing board system developed by our factory, using the hydraulic braking, stone roller chain drive, translational synchronization, stone roller chain manipulator. Pull board system by motor, hydraulic motor, car pull board, sprockets, chains, etc, under the control of the relay, motor drive the hydraulic motor, through the chain drive around pull board the car finish pull board, the board system adopts the intelligent control, both tensile plate when the action is slow, fast, slow, can improve the efficiency of the drawing board and protect the function of the filter plate. Pull plate speed can be control according to the proficiency of operating personnel. This system has greatly increased the filter press a working cycle and effectively reduce the pain degree of the workers.



    Working principle of Filter Press Machine:

    1. Filter press is composed of a frame, filter plate, pressure system (manual, hydraulic, mechanical three forms) and the electrical control cabinet.

    2. The frame part supports pressure device and the filter plates, from the base, pressing plate, the thrust plate and the main girder.

    3. The filter plate is installed between the pressure plate and the thrust plate girder, meantime with filter cloth.

    4. At work, by the clamping device (oil cylinder piston rod or wire rod) push the pressure plate, will be located in the pressure plate and the thrust plate between the filter plate and filter cloth clamp, by compression between the filter plate and filter plate to form the filter chamber, the feed pump into the material from the thrust plate feed opening into the filter chamber, solid particles trapped in the filter room, and filter cake formation, the liquid is through the filter cakes and filter cloth made from the SAP of the hole outside eduction body. If you need cleaning of filter cake, available on the transom lotion mouth pass into the washing water for cleaning filter cake. If the filter cake must be dry, wash mouth ventilation with compressed air, then blow dry cake.

    5. Plate and frame filter press and box pressure filter structure is the same, just filter part is a box of filter cloth and a plate, plate and frame space is the filter chamber.

    6. Filter press flow is divided into two forms: free flow and undercurrent flow. Free flow refers to the fluid filtrate from each filter plate hole directly discharge closed; Undercurrent refers to various pieces of filter plate filtrate together by the hole of produced liquid discharge outside.



    Technical Specification of Automatic Filter Press Machine:

    filter press model

    Filter area (m2)

    Size (mm)

    Cake thickness (mm)

    Plate qty.

    Chamber volume (L)

    Filter pressure (Mpa)

    Size (mm)

    Weight (kg)

    length

    width

    height



    F1/320

    1

    320*320

    30

    4

    15

    1.0

    1200

    660

    650

    340

    F2/320

    2

    9

    31

    1515

    390

    F3/320

    3

    14

    46

    1755

    440

    F4/450

    1

    450*450

    30

    9

    61

    0.6

    1860

    870

    870

    680

    F6/450

    6

    14

    91

    2120

    730

    F8/450

    8

    19

    122

    2380

    790

    F12/450

    12

    29

    182

    2880

    900

    F16/450

    16

    39

    243

    3380

    1000

    F20/630

    20

    630*630

    30

    24

    298

    0.6

    3350

    1150

    1150

    1870

    F30/630

    30

    37

    453

    4000

    2190

    F40/630

    40

    47

    595

    4600

    2450

    F50/800

    50

    800*800

    30

    38

    749

    0.6

    4205

    1400

    1300

    2790

    F60/800

    60

    46

    902

    4670

    3040

    F70/800

    70

    54

    1056

    5115

    3300

    F80/800

    80

    62

    1210

    5560

    3550

    F50/1000

    50

    1000*1000

    30

    28

    752

    0.5

    3800

    1450

    1350

    3080

    F60/1000

    60

    34

    908

    4260

    3330

    F70/1000

    70

    40

    1064

    4520

    3580

    F80/1000

    80

    45

    1194

    4820

    3790
