| 原産地: | 中国(本土) | 電圧: | 220av | 銘柄: | フェートン | 寸法 (L*W*H): | L3,080w990xh1,260ミリメートル | モデル番号: | Ud-181lb | 重量: | 204kg | 自動等級: | 自動 | タイプ: | インクジェット式プリンタ | 色及びページ: | 多色刷り | 全体のパワー: | 2000w | 認証: | ce | 使用法: | 布プリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 平面プリンター | 条件: | 新しい | 印刷インターフェース: | Usb2.0 |
包装
| 包装: | 木製パッケージリットル3,080w1100xh845mm/390kg |

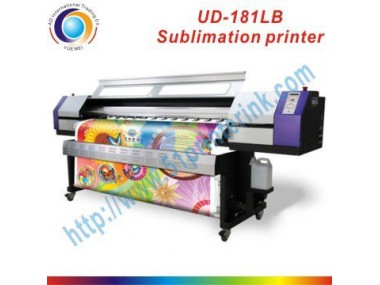

Sublimation Printer 1.8m UD-181LB with Epson Dx5 Head
Features:
1.fast speed,original epson dx5 head
2.used for printing polyester materials
3.standard print 25.sq.m./h
4.used dye ink,4 color
5.stable and long durability,full aluminum platform and bearing rail
6.X.Y axis AC servo motors,run the carriage quicker and more stable.
7. USB2.0 output system , faster and more flexible
Specification:
| Model No. | UD-181LB |
| Printhead | Micro piezo printhead : Epson dx5 printhead |
| Color | Double 4 color :C-2 M-2 Y-2 K-2 |
| Print Width | 1800mm |
| MaximumPrinting Resolution | 1440dpix1440dpi |
| Printing Speed(m²/h) | Draft model : 2 Pass 25 sq.m./h |
| Standard model : 3 Pass 15 sq.m./h | |
| Quality model : 4 Pass 10 sq.m./h | |
| High quality model : 6 Pass 8 sq.m./h | |
| Ink | Type : Disperse Dye |
| Color : 4 Color (C,M,Y,K) | |
| Ink Capacity | 1L per Main Tank of Each Color |
| Media | Heat Transfer Paper,Polyster,Satin,Warp Knitted,Mesh Knitted fabric,Flag banner fabric ect. |
| Maximum Width: 1,880mm | |
| Pre-heating & Drying System | Equipped |
| Clamp | Equipped |
| Auto Media Feeding & Take- up System | Equipped(Max. Media Weight 25kg) |
| Auto Cleaning System | Anti-Clogged Flash Function & Capping System |
| Rip Software | Ultraprint,Maintop,Photoprint,Wasatch |
| Interface | USB 2.0 |
| Operation System | Windows XP |
| Input Power | AC 220, 50Hz/60 HZ |
| Woking Environment | Temperature : 20 - 25 ,Humidity : 40 -70 % |
| Machine Dimension /N.W | L3,080 x W 990 x H 1,260mm / 204KG |
| Package Dimension / G.W | L3,190 x W 1,100 x H 840 mm / 390 KG |
Package and Delivery:
We could provide professional package and fast delivery, make it complete to you.
We are specialized supplier,the products including:
A.Infiniti/Challenger/Phaeton/Galaxy/Icontek printer
B.Solvent ink,Eco Solvent in for kinds of printers
C.printer parts
If you need any help,please feel free to contact us.
We are always here.
Hope to cooperate with you.
