| 原産地: | 中国(本土) | 電圧: | 380ボルト | 銘柄: | dongao | 寸法 (L*W*H): | 14500 × 3300 × 1900 | モデル番号: | zykm | 重量: | 12 t | 自動等級: | 半自動 | タイプ: | フレキソ印刷のプリンタ | 色及びページ: | 多色刷り | 全体のパワー: | 60 ｈｚ | 認証: | iso: 9001: 2000 | 使用法: | ペーパープリンター, カードプリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 平面プリンター | 条件: | 新しい | タイプ: | 段ボールカートンフレキソプリンタ機 | アプリケーション: | カートンボックスを作る | 駆動型タイプ: | エレック | スピード: | 60-150枚/分 | 管理認証: | iso 9001: 2000 | 認証: | ce証明書 | 品質: | より良い | サービス: | 良いで1年 | 原産地: | 洞グアンheibei中国 | カラー&ページ: | 多色 |
包装
| 包装: | プラスチックや木製 |
corrugated colors flexo printing and slotter machine

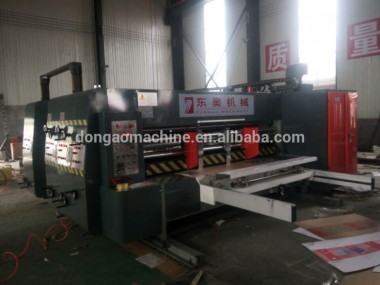

YFQ Flexo 1-4 color Water Ink Flexo Printing Slotting Die-cutting and stacking Machine
Contact me to get full details, video and price.
Functions and Characteristics:
1 Whole machine electric parts was choice the domestic famous brand, good and steady quality .
2 Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digital controlled grinder.
3 All the transmission axles and rollers are made by high-quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.
4 All the transmission gears was used the 48# alloy steel, which is grinded after heat-treatment, and it was made by rubbing. It still maintains the high topping precision.
5 Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the machine.
6 Planetary gear structure. All gears are after fine grinding.
7 Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.
8 Option: Anilox roller, And stacker Machine.
1-4 color printer, slotter, die cutter, and stacker can be combination freely according to your requirements.
Automatic feeding machine also can be connected to it.
Main operated size: 1800mm, 2000mm, 2200mm, 2400mm, 2600mm, 2800mm, and so on.
Main Parameters:
type | YFQ | YFQ | YFQ | |
Change speed way (stepless speed regulating) | 80pieces/min | 80pieces/min | 80pieces/min | |
Max. shape carton | 1470×2000 | 1470×2200 | 1470×2400 | |
Min. shape carton | 380×500 | 380×500 | 380×500 | |
Effective printing area | 1470×1800 | 1470×2000 | 1470×2200 | |
Printing thickness | 2-11 | 2-11 | 2-11 | |
Printing way | Flexibility double printing | |||
Printing model thickness | 4±0.10 | 4±0.10 | 4±0.10 | |
Hang vision 7±0.10 | Hang vision 7±0.10 | Hang vision 7±0.10 | ||
creasing slotter | 4setting | 4setting | 4setting | |
Max. slotter thickness | 380 | 380 | 380 | |
Slotter weidth | 7 | 7 | 7 | |
Motor power | 3KW | 3KW | 3KW | |
