    3/5プライ段ボール板紙生産ライン/カートンボード製造機-包装ライン
    商品番号: 13073132
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380 原産地: 中国(本土) 適用: 衣服, 商品, 化学薬品, 医学, 食物, 飲料, 機械とハードウェア, 織物
    ドライブの種類: 電気 銘柄: dongao モデル番号: 1200に2400
    重量: 45 t 自動等級: 自動 包装タイプ: ボール箱
    タイプ: パッケージライン 認証: ce 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため
    包装材料: 木, プラスチック 条件: 新しい 次元(L*W*H): 85000 × 7000 × 4500
    力: 60 タイプ: 段ボール生産ライン アプリケーション: 段ボール生産ライン
    駆動型タイプ: エレック スピード: 60-150枚/分 管理認証: iso 9001: 2000
    認証: ce証明書 品質: より良い サービス: 良いで1年
    原産地: 洞グアンheibei中国 カラー&ページ: 多色

    包装

    包装: プラスチックや木製

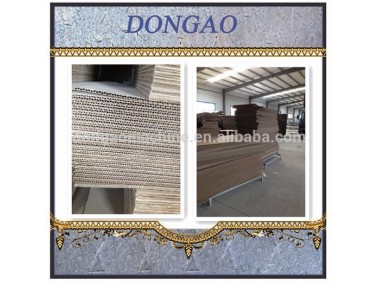

    Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line mainly consist of the following equipment :Mill Roll Stand, surface paper(core-paper) pre-heater.Single facer, Conveying Span Bridge.Glue Application Machine, Double Facer.Slitter Scorer,Cut-off,Conveyer and Stacker.Heating System.Air compression system and Glue Making System,etc.The 3ply,5ply,7ply,and multi-function corrugated cardboard productiong line has high middle and low grade with different-specification and different-quality equipment. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 150-220m/in;the paper width 1400-2200mm and four fluting UV type A,B,C,E for all the customers to choose from.





    No.

    Name

    Description

    1

    Mill roll stand

    Shaft less hydraulic paper reel handling machines paper reel clamping, lift-lower, centering of the paper reel. Expandable chucks, pneumatic brakes.

    2

    Single facer

    Suction cover vacuum adsorb to guide paper, Cr-Mo alloy, diameter of roller is φ380mm. Pneumatically control the gap between glue roller and corrugated roller, Manual fine-tuning the amount of glue, Glue pump automatic cycle, Frequency Control, speed adjustment by invertors ,

    3

    Conveying bridge

    Sngle facer drive, Automatic synchronization operation. Electric adjusts centering cardboard,adsorb tensioner control.

    4

    Double glue machine

    Adjust amount of glue and gap manually, pneumatic paper press, Automatic glue application and glue pump operation to control the glue thickness so that card boards are straight and higher bursting strength

    5

    Triple preheater

    Eclectic or steam heating to adjust area of preheating, diameter φ800mm./ φ600mm

    6

    Preheater

    Eclectic or steam heating to adjust area of preheating, diameter φ800mm./ φ600mm

    7

    Double facer

    520mm×22 pcs hot plate steam heated, 9m module, Intensive pressure roll-type, electric drive lift-lower as a whole. Cotton belt tensioned pneumatically, adjust tension of upper and lower belt. Active power-driven single-axis, frequency control.

    8

    Thin blade

    Thin blade cutting machine adopt electromagnetic non-polar adjusting-speed motor drive,one level of V belt and chain transmitting, transfer the power to creasing wheel,thin blade and leading paper axis. Creasing wheel can axial move by hand,after ensuring the creasing position can tighten the screw in the creasing wheel. The down creasing wheel sometimes needs to turn the machine manually,after show the tightening bolt can axial adjust.

    .

    9

    Single blade NC. cutoff

    imported AC servo motor, blade roller server control cutoff; frequency control input and output paper transmission, automatic tracking of the production line speed; auto change order and storage more orders, made in Dongguang of Hebei province.

    10

    Glue-making Circulatory system

    One unit of glue mixing tank with stirrer, glue storage system, glue recycle system, automatic glue level controler

    11

    Air-Compressor

    Air-compressor station is composed of 0.9m³/min 2 air-pressure unit 1m³, 1 air tank, to supply air continuously at stable pressure

    12

    Electric control system

    Digital display -  Fully automatic PLC controlled system with Omron, Siemens, electronic and electric parts for longer life of the machine.

    Speed of the machine adjusted by inverter

    13

    Steam system

    Separate unit to supply steam for each machine group, flexible metal hose connects Heating pipes with rotating parts.

    14

    Gantry stacker

    Gantry output
