| 原産地: | 中国(本土) | 銘柄: | hongtong | モデル番号: | Rht-45-yt-260055-yt-280060-yt-21000 |
自動等級: | 自動 | タイプ: | 押出ブロー成形 | 版のタイプ: | pe | 条件: | 新しい | 使用法: | フィルム |
包装
Characteristics:

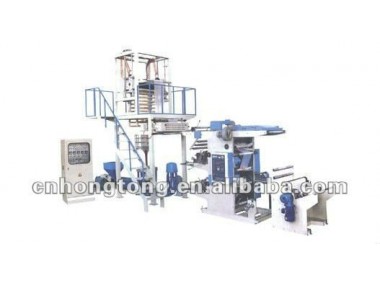

The unit integrated film-blowing and printing that was designed by the computer can save labor force. workshop rooms,
and improve the quality of products and economic results.
Use:
It is applied to blowing plastic films like low density polyethylene(LDPE),high density polyethylene (HDPE) and linear low density polyethylene (LLDPE),etc. It is
widely applied to packing foodstuff, clothing, rubbish bags ,vest bags, etc, in the civillian and
industries sectors.
Main technical parameter
| Model | RHT-45-YT-2600 | RHT-55-YT-2800 | RHT-60-YT-21000 | | Application materials | HDPELDPELLDPE | HDPELDPELLDPE | HDPELDPELLDPE | | Screw DIA | 45 | 55 | 60 | | Screw L/D ratio | L/D281 | L/D281 | L/D281 | | Blow film motor power | 11KW | 15KW | 18.5KW | | Max Extrusion Quantity | 35/h | 45/h | 60/h | | Film Head DIA | Φ50Φ100 | Φ80Φ120 | Φ120Φ220 | | Blow Film Width | 600 | 800 | 1000 | | Blow Film Thickness | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 | | Length Range of printing | 191-914 | 191-914 | 191-914 | | Printing width | 560 | 760 | 960 | | Total power | 28KW | 32KW | 40KW | | Weight machines | 3800 | 4200 | 5000 | | Dimension of machinery | 6000×2400×4000 | 6200×2600×4300 | 6400×2800×4800 |
|
