適用: | 600-1300 | 原産地: | 中国(本土) | 電圧: | 380ボルト | 銘柄: | hongtong | モデル番号: | ZWQ-700 ZWQ-1100 ZWQ-1300 | 力(W): | 7.5kw | 評価される力: | 2.7KW/3.5kw | タイプ: | 製品タイプ:スリットと巻き戻し機 | 認証: | iso9001 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 最高。 切込み歯丈: | 1000ミリメートル | 鋸歯の直径を: | 140ミリメートル | 次元: | 3000*2300*1570ミリメートル | 正価格販売回転速度: | 200メートル | コンピュータ化: | はい | アプリケーション: | フィルムスリッター | 包装タイプ: | ボトル | 重量: | 1.8T-2.. 2 t |

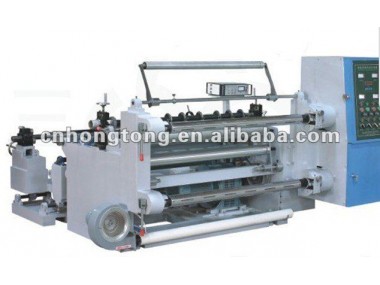

ZWQ700-1300 Series Horizontal Computer Slip-separating Machine, suitable for slitting paper.
ZWQ700-1300 Series Horizontal Computer Slip-separating Machine
It is mainly applied to split plastic film, stick paper, non-woven fabrics, aluminium foil insulator paper and photosensitive materials, etc. It adopts electromechanical integration controller, automatic rectifyingdeviation, auto meter numbering device, meter-presetting, and auto stoppage, constant tension controller and stepless speed regulator. Characteristics with fast speed, neatly cut expected.
Main Technical Variables:
Type | ZWQ-700 | ZWQ-1100 | ZWQ-1300 |
Max.Width of Mother | 600mm | 1000MM | 1200mm |
Max.diameter of Mother Roll | 600mm | 600mm | 600mm |
Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
Slitting and Rewinding Speed | 5-180m/min | 5-180m/min | 5-180m/min |
Motor Power | 2.7kw | 3.5kw | 3.5kw |
Weight of Machine | 1800kg | 2000kg | 2200kg |
Overall Dimension | 21001800x1200mm | 21002000x1200mm | 22002100x1200mm |
