| 原産地: | 中国(本土) | 電圧: | 220v/380v/440v、 50hz/60hz/3相 | 銘柄: | toplong | モデル番号: | Qt7-15a | タイプ: | 空洞のブロック成形機 | 認証: | ceiso9000 | 煉瓦原料: | セメント | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 処理: | レンガ製造ライン | 方法: | 油圧圧力 | 保証: | 12ヶ月 | 条件: | 新しい | 次元(L*W*H): | 2900*1600*2200mm | 力: | 20キロワット | 自動: | はい | 容量: | 30セット/month | 名: | 煉瓦ペーバーブロック製造機 | 他の名前: | 高- エンド煉瓦ペーバーブロック製造機 | レンガ原料:: | セメント、 コンクリート、 フライアッシュ、 砂、 con | 中空容量: | (8時間) 16000- 25200個 | 混合機: | js500mixingマシン | 色: | 青、 赤、 グレー | 船積み: | 1*401*20gpと必要な容器 | 定格圧力:: | 21mpa | パレット: | 必要とされる1000-2000pcsパレット | 保証: | 12ヶ月 |
包装
| 包装: | レンガ舗装パッキングブロック製造機: 標準耐航パッキン |
High-End Distinctive block making machine brick paver
Specification of block making machine brick paver:
| QT7-15A Automatic Block Making Machine | |||||||||
| Each Mould | Brick | 36Pcs/Mould | Power | 29.7KW | |||||
| 240115x53mm | |||||||||
| Paving Block | 18Pcs/Mould | Weight | 10.7T | ||||||
| 200100x60mm | |||||||||
| Hollow Block | 20Pcs/Mould | Dimension | 2980×2300×2900mm | ||||||
| 240115x90mm | |||||||||
| Hollow Block | 7Pcs/Mould | Pallet Size | 1100×700×30mm | ||||||
| 390190x190mm | |||||||||
| Moulding Cycle | 16-25Seconds/cycle | Vibration Mode | Board Vibration | ||||||
| Vibration Force | 75KN | Standard | JC/T920-2003 | ||||||
| Good Reasons to choose QT7-15 | |||||||||
| High | Brick | | 36Pcs/Mould | (8hours)51000-64800Pcs | |||||
| Production | 240115x53mm | ||||||||
| Hollow Block | | 20Pcs/Mould | (8hours)28800-36000Pcs | ||||||
| 240115x90mm | |||||||||
| Hollow Block | | 7Pcs/Mould | (8hours)8800-10000Pcs | ||||||
| 390190x190mm | |||||||||
| Paving Block | | 18Pcs/Mould | (8hours) 20000-26000Pcs | ||||||
| 200100x60mm | |||||||||
| Notes:Production depends on raw materials,block specification ,mould design and efficiency of user. | |||||||||
| Good Design: | |||||||||
| A,The balance system adopts four-pole guarding way with extended bush to ensure the exact movement of mould.Gear and shaft balance system can make male and female mould move stably. | |||||||||
| B.The way of feeding is revolving,convective and compulsive to ensure block density and reduce feeding cycle. Gear driving mode of feeding is more steady.Feeder moving is two curved arms drived by two cylinders,which makes feeder move quickly,durablly,and steadly. | |||||||||
| Hydraulic System: | |||||||||
| The hydraulic system adopts proportion direction valve.The valve can adjust flow rate and buffer cylinder.Therefore,it can protect cylinder and extend life,and make operation steadily and quickly. | |||||||||
| Vibration System: | |||||||||
| The vibration adopts frequency conversion technique.The assembly is oil immersed vibration.This improve high speed loading and makes concrete liquefied and air-outed.The five advantages is vibration assembly synchronization,soft starter,densify block,electric saving and quick moulding. | |||||||||
| High Automatic level: | |||||||||
| Using Japanese Omron sensor as signal source and Germany Siements PLC as central processing unit to make oil system,air system,electric system and machanical system to be one part.The plant can work automatically and cyclically.Our technicians put fault diagnosis,problem alarming into computor by safty logic control.The screen will show fault and methods to client if there is some problems. | |||||||||
| Steady&Safe System: | |||||||||
| It adopts separation of high and low voltage electricity,low voltage controls high voltage technique.This will solve problem of high voltage interfere and ensure gaining of exact signal.It is safe for people and machine. | |||||||||

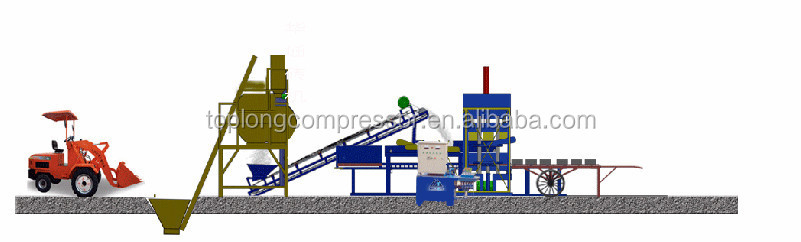

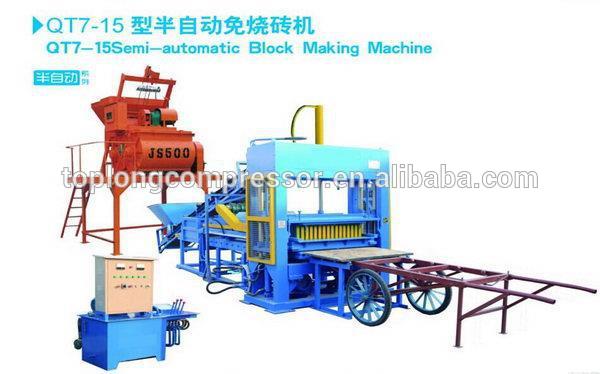

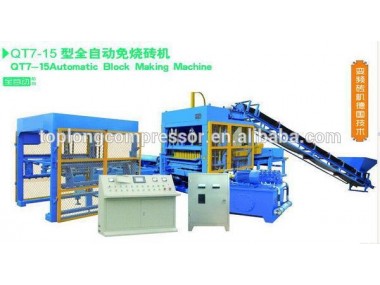

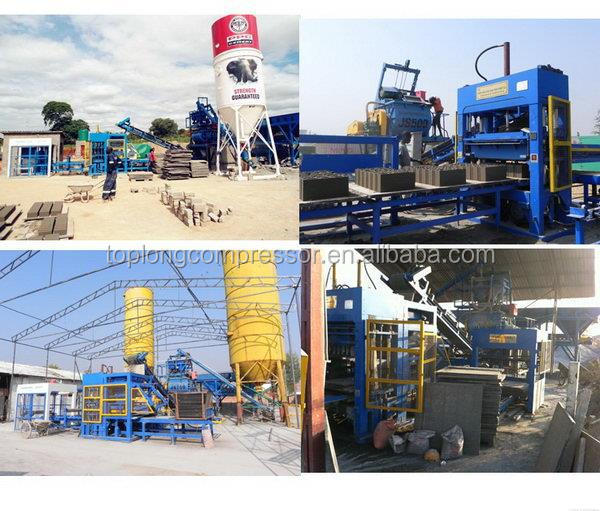

Pictures of block making machine brick paver:
block making machine brick paver
