| 原産地: | 中国(本土) | 電圧: | 220ボルト/ 380ボルト/ 440ボルト、50 ｈｚ/60 ｈｚ/3相 | 銘柄: | toplong | モデル番号: | QT7-15 | タイプ: | 空洞のブロック成形機 | 認証: | ce iso9000 | 煉瓦原料: | セメント | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 処理: | レンガ製造ライン | 方法: | 油圧圧力 | 保証: | 12ヶ月 | 条件: | 新しい | 次元(L*W*H): | 2900*1600*2200ミリメートル | 力: | 20kw | 自動: | はい | 容量: | 30セット/月 | 名前: | マニュアルレンガブロック製造機 | 他の名前: | 強力なマニュアルレンガブロック製造機 | レンガ原料:: | セメント、コンクリート、フライアッシュ、砂、詐欺 | 中空容量: | (8時間) 16000-25200ピース | 混合機: | JS500Mixing機 | 色: | 青、赤、グレー | 無料: | 1*40 'と1*20 gpコンテナ必要ありません | 定格圧力:: | 21Mpa | パレット: | 1000-2000ピースパレット必要ありません | 保証: | 12ヶ月 |
包装
| 包装: | マニュアルレンガブロック製造機パッキング: 標準耐航パッキン |
Powerful High Power manual brick block making machine
Specification of manual brick block making machine:

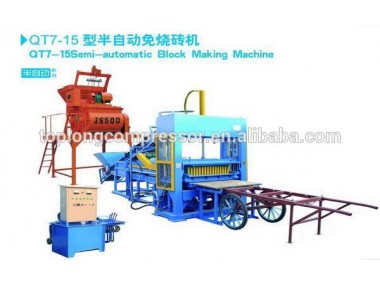

| QT7-15 Semi-automatic Block Making Machine | |||||||||||
| Main Configuration | Name | Quantity | |||||||||
| Block Machine | 1set | ||||||||||
| Hydraulic System | 1set | ||||||||||
| Automatic Pallets Feeder | 1set | ||||||||||
| Belt Conveyor | 1set | ||||||||||
| Trolleys | 4sets | ||||||||||
| Pallets | 15Pics | ||||||||||
| JS500Mixing Machine | 1set | ||||||||||
| Specifications | |||||||||||
| Each Mould | Brick | 36Pcs/Mould | Power | 25.8KW | |||||||
| 240115x53mm | |||||||||||
| Paving Block | 18Pcs/Mould | Weight | 7T | ||||||||
| 200100x60mm | |||||||||||
| Hollow Block | 20Pcs/Mould | Dimension | 2980×2300×2900mm | ||||||||
| 240115x90mm | |||||||||||
| Hollow Block | 7Pcs/Mould | Pallet Size | 1100×700×30mm | ||||||||
| 390190x190mm | |||||||||||
| Moulding Cycle | 16-25Seconds/cycle | Vibration Mode | Board Vibration | ||||||||
| Vibration Force | 70KN | Standard | JC/T920-2003 | ||||||||
| Good Reasons to choose QT7-15 | |||||||||||
| High | Brick | | 36Pcs/Mould | (8hours) 52000-65000Pcs | |||||||
| Production | 240115x53mm | ||||||||||
| Hollow Block | | 20Pcs/Mould | (8hours)28000-36000Pcs | ||||||||
| 240115x90mm | |||||||||||
| Hollow Block | | 7Pcs/Mould | (8hours)8000-10000Pcs | ||||||||
| 390190x190mm | |||||||||||
| Paving Block | | 18Pcs/Mould | (8hours) 21000-26000pcs | ||||||||
| 200100x60mm | |||||||||||
| Notes:Production depends on raw materials,block specification ,mould design and efficiency of user. | |||||||||||
| Pallets- | The wet bricks could be stacked if raw materials is good since the special design and advanced moulding mode with unique exhaust technique.So you can save the cost for buying pallets.The finished bricks has high density and increased compressive and folding strength.The strength could be increased 20%-25% with same proportion of raw materials.(the strength of brick is 10--25Mpa for different raw materials). | ||||||||||
| Saving | |||||||||||
| Multi-Fuctional | The machine can make different products with different moulds,like hollow blocks,solid bricks,pavers,Kurbstones and so on. | ||||||||||
| Power-Saving | when the machine is working,only the main machine is always on,other parts only works at regular intervals. | ||||||||||
| Quick Speed | The male and female mould inserts and pulls out quickly with high-powered hydraulic pump.Meanwhile,all the processes like feeding concrete into female mould and preparing concrete are finished at the same time. | ||||||||||
| High Quality | The switches and electronic is using CHNT brand.Mould is processed by heat treatment,carburizing. | ||||||||||
| Easy Operation | The main machine is operated by one person,and other processes will be completed automatically by electronics.Because the pressure of vibration,is high,the materials needs less water.So the machine still can work under low temperature. | ||||||||||
| Quick Stacking | The bricks made by this machine is high density.The wet bricks could be stacked if raw materials is good.So you can save pallets and land. | ||||||||||

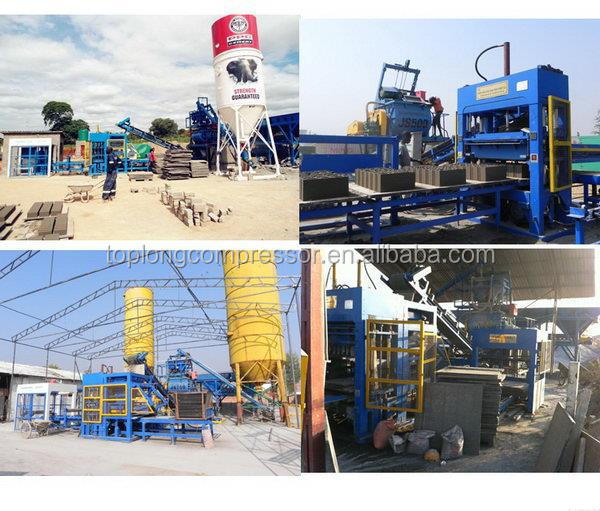

Pictures of manual brick block making machine:
manual brick block making machine
