| 原産地: | 中国(本土) | エミッション規格: | ユーロ3 | 銘柄: | 東風 | 伝達タイプ: | 手動 | 条件: | 新しい | モデル番号: | CLW5110ZYST3 | 総車高: | 16000 | サイズ: | 7790 × 2370 × 2480 | 燃料のタイプ: | ディーゼル | 容積: | 6001--10000L | タイプ: | コンパクター | ドライブ車輪: | 4x2 | 認証: | ccc | 色: | 白、ブルー | 発表のバッチ: | 240 | 製品番号: | ZHBWW3XN06L | トラックボディ容量(m3): | 10m³ | ホイールベース(ミリメートル): | 3950 | マックス。速度(km/h): | 90 | フロント/リア車軸負荷(キロ): | 4195/7300 | 番号の軸: | 2 | アプローチ/出発(°): | 33/11、33/13 | キャブ席(人々): | 3 |
包装
| 包装: | ヌード |
Products
The garbage dump truck is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.
Garbage dump truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places wher garbage is centralized.
This garbage dump truck is using hydraulic system dor dumping the garbage easily.

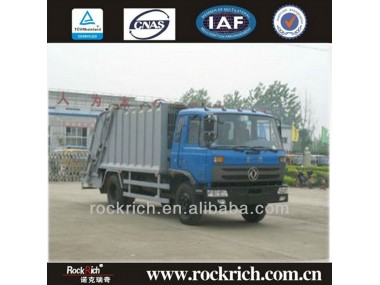

Best Price CLW Garbage Truck With Compactor
CLW5110ZYST3 Type Compactor garbage truck
[Main Technical Parameters] | |||
Product Brand | GLW | Announcement of the batches
| 240 |
Product Name | CLW5110ZYST3 compactor garbage truck | Product No | ZHBWW3XN06L |
Gross vehicle weight(Kg) | 11495 | Truck body capacity(m3) | 10m³ |
Rated contained mass(Kg) | 2800 | Dimension(LxWxH)( mm) | 7750,7600×2495×3350 |
Kerb mass (Kg) | 8500 | Gargo box (mm) | 38502220x1850 |
Cab seats (people) | 3 | Quality of the utilization factor | |
Approach/Departure(°) | 33/11,33/13 | Overhang(Front/Rear)(mm) | 1250/2550,1250/2400 |
Number of axes | 2 | Wheel base(mm) | 3950 |
Front/Rear axle load(Kg) | 4195/7300 | Max.Speed(Km/h) | 90 |
Other | No car optional tilting mechanism.No tilting mechanism when the total length of the vehicle7600 mm,Corresponding to the rear overhang is2400 mm.Protective materials:Q235 Carbon Steel,Connection way :Left and right side of the protective welded connections, the rear protective immunity.
| ||
[Chassis Technical Parameters] | |||
Chassis Model | EQ1110GLJ | Chassis Name | Truck chassis(II) |
Brand name | Dongfeng | Product Manufacture | Dongfeng automobile company
|
Overall Dimension(LxWxH)(mm) | 7120×2462×2710 | Number of tires | 6 |
Approach/Departure(°) | 33/22 | Tire Size | 9.00-20 |
Number of leaf spring | 8/11+8 | Front track width(mm) | 1900,1810 |
Type of fuel | Diesel | Rear track width(mm) | 1800 |
Emission Standard | GB3847-2005,GB17691-2005 euro | ||
Engine Type | Engine Manufacturer | Displacement(ml) | Power(Kw) |
B170 33 | Dongfeng Cummins Engine Co., Ltd. | 5900 | 125 |
