| 原産地: | 中国(本土) | 電圧: | 380ボルト | 銘柄: | eta | モデル番号: | eta c2 | 現在: | 60a | 重量: | 1450 | タイプ: | はんだ付けする機械 | 認証: | iso/ce/ccc | 使用法: | ウェーブはんだ付け機 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | 次元: | 4200*1350*1450 | 評価される使用率: | 2 | 評価される容量: | 350 |
包装
| 包装: | 木製ケース |

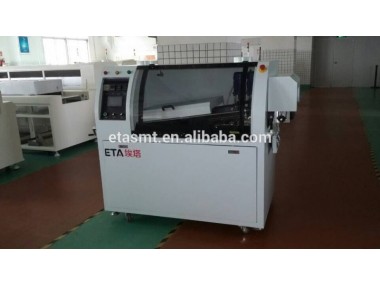

Mini wave soldering machine price C2
Distortion-free Conveyor System
>Chain type entrance guides.
>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.
>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).
>Automated finger cleaner ensures long finger life.
Spray Fluxer
>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model
>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and remove excessive flux.
>Flux and air flow can be adjusted via the control panel.
Brand New Lead-free Solder Pot
>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30.
>Minimized solder oxidation, automated solder dross collection( patent technology).
>Optimized solderability for lead-free process.
Cooling System
>Standard Turbine blower.
ETA Lead Free Wave soldering machine Specifications | |||||||
Specifications | C4 | C3 | C2 | C1 | |||
Dimension:L*W*H(mm) | 4200 X 1250 X 1500 | 3600 X 1250 X 1500 | 2100 X 900 X 1500 | 2000 X 1250 X 1500 | |||
Weight(kg) | Approx.2100kg | Approx.1800kg | Approx.1500kg | Approx.900kg | |||
Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | |||
Startup Power (kw) | 28kw | 24kw | 18kw | 15kw | |||
Operation Power Consumption | 10kw | 8kw | 6kw | 4kw | |||
Control System | PLC | PLC | PLC | PLC | |||
Spray System | |||||||
Transmission Methed | Air cylinder/step motor(option) | ||||||
Spray Pressure | 0.25Mpa--0.4Mpa | ||||||
Flux flow | 10--100ml/min | ||||||
Exhaust Ducting Diameter | Φ200mm | ||||||
Exhaust Capacity | 25m3/min | ||||||
Preheating System | |||||||
Preheating Mode | IR tube/Hot air is option | ||||||
Control Mode | PID + SSR | ||||||
Preheating Zone Number | 4 | 3 | 2 | 1 | |||
Preheating Length | 1800mm | 1600mm | 700mm | 350mm | |||
Preheating Temp. | (Room Temperature)-250 degree | ||||||
Warm-up Time(min) | Approx.15min (setting 150 degree) | ||||||
Conveyor System | |||||||
PCB Width (L X W)(mm) | Min:8060mm; Max:300300mm | Min:8060mm; Max:300300mm | Min:8060mm; Max:200300mm | Min:8060mm; Max:200300mm | |||
Conveyor Speed(mm/min) | 0-2000 | ||||||
Conveyor Height (mm) | 750+/-20 | ||||||
Finger | Double hook claw (Standard) | ||||||
Conveyor width control | Manually | ||||||
Conveyor Angle | 4~7degree | ||||||
Soldering System | |||||||
Solder Pot style | Mechanical Motor drive | ||||||
Solder Pot Material | Full Titanium (Standard FT) | ||||||
solder pot temperature | 300 degree | ||||||
solder pot capacity | Lead-free 400kg | Lead-free 300kg | Lead-free 200kg | Lead-free 100kg | |||
Other | |||||||
finger cleaning system | brush | ||||||
