電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | yawei | モデル番号: | qc12y | 重量: | 13トン | 力(W): | 15キロワット | タイプ: | 剪断機 | CNCまたはない: | CNC | 条件: | 新しい | 認証: | ceおよびi so | 次元(L*W*H): | 4500mmx1900mmx1800mm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アプリケーション: | シート切断 |
包装
包装: | スチールトレイまたは木箱 |

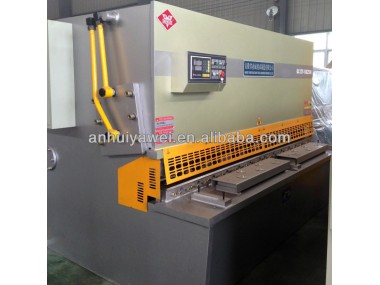

剪断機、 油圧シアラー、 シートの剪断機
machine qc12y- 12*6000
Ii 。 main parameter
1 | Max- 切削厚さ | 12 | ||
2 | Max- 切断幅 | 6000 | ||
3 | シートのstengthを | 450n/mm2 | ||
4 | Max- 切断角度 | 1・度; 75' | ||
5 | backguage | 20-1000mm | ||
6 | 回旅 | 10times/min | ||
7 | 最大- 距離の縦の列 | 6200ミリメートル | ||
8 | ブレード長さ | 6100ミリメートル | ||
9 | 作業テーブルの高さ | 800ミリメートル | ||
10 | 主電動機 | モデル | Y132m-6 | |
パワー | 30kw | |||
回転速度 | 960r/min | |||
11 | バックゲージモーター | モデル | yu80m6b | |
パワー | 0.55キロワット | |||
回転速度 | 900r/min | |||
12 | 歯車ポンプ | モデル | Nb4-g63f | |
流れの速度 | 63l/min | |||
圧力 | 20mpaで | |||
13 | 重量 | 28トン | ||
14 | 寸法 | 長さ | 6500ミリメートル | |
|
| 幅 | 2100ミリメートル | |
|
| 高さ | 2700ミリメートル |
Iii main parts
1 hydraulic system shanghai
2 seals japannok
上海3 oil pump
4 electric component siemens
Vi outer construction
1 using ug analysis( finite element analysis) optimize the deign through the computer's assistant。
2 the whole machine is in sheet plate welded structure、 with internal stress eliminated by vibration aging technology、 high strength and good rigidity of machine。
3mechanical stopper in oil cylinder、 typical of high feedback precision for position of gliding block 、 accurate and stable operation、 good synchronizing performance 、 and high repeated positioning precision of gliding block。
4with germany skill to avoid inner reaction
5the whole frame remove rust by sand paper、 with antirust
Vfeature or characteristic。
1 assistant tooling set on work table、 make tooling adjustment easier
2 rolling material support make operation easier
3 indication by indicator is provided for adjustment of blade clearance、 for a handy and prompt adjustment。
4 the adoption of four- side edge shearing blade prolongs the service life of blade。
5 alignment device with lighting and control device for shearing stroke are set、 with a handy and prompt adjustment。
6 the rear stopper is fitted with electric adjustment and manual adjustment devices、 and digital display device is available for display of size of stopper and times of shearing。
