| 原産地: | 中国(本土) | 銘柄: | 宇君zy | モデル番号: | 1.8メートル溶接金網フェンス溶接機 | タイプ: | 溶接金網フェンス溶接機 | 条件: | 新しい | 商品の説明: | 1.8メートル溶接メッシュ機 | 重量: | 2700キログラム(のみを機) | 電源: | 3.7kw | 直径: | 1.0ミリメートル-2.5ミリメートル |
包装
| 包装: | 木製ボックスで、 ビニール袋に入れたりお客様のニーズに合わせた。 |
Welded Wire Mesh Machine
DEscriptION OF GOODS |
| 1.8M WELD MESH MACHINE |
OVERSIZE |
| 3400MM×1700MM×1400MM |
WEIGHT |
| 2700KG(only the machine) |
TRANSFORMER |
| 80KVA×6 |
POWER |
| 3.7KW |
MESH SIZE |
| 1 INCH(doubled up) |
DIAMETER |
| 1.0MM-2.5MM |
WIDTH OF MESH |
| 1500MM-1800MM |
CRANKROTATIonAL SPEED |
| 50-80R/MIN |
NOTES:
1)THE MESH SIZE CAN BE DOUBLED UP,
2)OPERATION OF THE MACHINE FROM BOTH SIDES LEFT & RIGHT , MACHINE
STOPS ITSELF AUTOMATICALLY ON BEAKAGE OF ANY WIRE.
3) RATED VOLTAGE : 440 VOLTS, FRQUENCY 50 HZS
4)MOTOR SPEED 960 RPM/MINUTE
5)INSTRUCTION BOOK/OP. MANUAL IS PROVIDED ALONG WITH MACHINE
6)EASILY DAMAGED PARTS ARE PROVIDED ALonGWITH THE MACHINE
FOR FREE,WE ALSO SEND 20 SPOOLS FOR EACH MACHINE FOR STANDBY.
7) WARRANTY:ONE YEAR.
Inspection can be done by the buyer at any point of time during manufacturing.

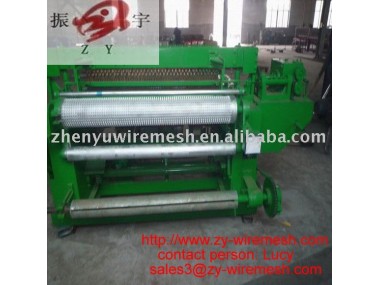

1.8 Welded wire mesh machine
