| ヤーンのタイプ: | Eガラス | アルカリの内容: | 媒体 | 原産地: | 中国(本土) | 停止時の温度: | 50 | 適用: | 壁材 | 銘柄: | 宇君zy-ブランド | モデル番号: | zy-638 | 重量: | 80グラム/㎡ | メッシュのサイズ: | 5mesh * 5メッシュ | 織り方のタイプ: | 編まれる平野 | 幅: | 2メートル | メッシュ: | 5mesh * 5メッシュ | 重量: | 80グラム/㎡ | 幅: | 2メートル | 長さ: | 100メートルまたは遮断する任意の他 | 色: | ホワイト | 糸タイプ: | e-ガラス |
包装
| 包装: | ロール内によるskinpacking、4-6のロールcarton.80000-150000m2で40hcコンテナ |
仕様

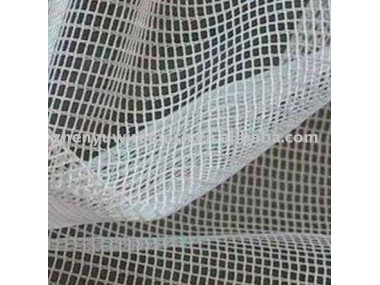

Fiber glass mesh:
Zhenyu metal mesh Poducts Co.,Ltd offers concrete reinforcement fiberglass mesh for wall materials in different materials and different patterns.
The features of concrete fiberglass mesh:
1.Material:fiberglass,polymer emulsion resistance
2. Characteristics of concrete fiberglass mesh
-Chemical stability.
-Low weight,high strength.
-Size stablility,even,non contraction distortion.
-Impact resistance.
-Mildew prevention,insect prevention,
-Fireproofing,thermal insulation,sound insulation,isolation.
3. Package
In rolls by skinpacking,4-6 rolls in a carton,80000-150000m2/40'HC container.
4. High quality
A.Coating glue: our coating glue is produced by South Korea LG Chemical Company which belongs to LG Group; it can keep more than 70% after 28 days NaoH test.
B.Our fiberglass yarn is supplied by Jushi Group which is the largest producer of fiberglass yarn in the Asian; it is more 20% strong strength and beauty surface than normal fiberglass yarn.
C.Certificates to guarantee quality:
Passed in ISO9001 certificate, IQ net and China National test.
5. Application of product.
Used for protection and strengthen of wall structure, reinforcement the GRC or other building materials products, as well as protection of surface for marble and granite.
6.Specification:
1.Gram:80g .
2.Size:5mm*5mm,
3.Length:100m,or cut off toany other .
4.Width:2m .Color:white.
5.alkali:medium alkali .
Notes:special size also could be made as request.
Item Number | Mesh Size (mm) | Finished weight (g/m2) | Tensile StrengthX20cm | Content of resin %(≥) | ||||||
Warp | Weft | Warp | Weft | |||||||
ZY1010-60 | 10 | 10 | 60 | 500 | 650 | 17 | ||||
ZY4X5-75 | 4 | 5 | 75 | 600 | 650 | 18 | ||||
ZY5X5-80 | 5 | 5 | 80 | 700 | 850 | 18 | ||||
ZY5X5-90 | 5 | 5 | 90 | 700 | 1050 | 18 | ||||
ZY4X4-100 | 4 | 4 | 100 | 750 | 1000 | 18 | ||||
ZY1010-100 | 10 | 10 | 100 | 1000 | 1250 | 20 | ||||
ZY4X5-120 | 4 | 5 | 120 | 1000 | 1300 | 18 | ||||
ZY5X5-125 | 5 | 5 | 125 | 1200 | 1300 | 18 | ||||
ZY1010-125 | 10 | 10 | 125 | 1250 | 1450 | 20 | ||||
ZY5X5-135 | 5 | 5 | 135 | 1300 | 1400 | 18 | ||||
ZY4X4-135 | 4 | 4 | 135 | 1000 | 1300 | 18 | ||||
ZY4X5-140 | 4 | 5 | 140 | 1300 | 1350 | 18 | ||||
ZY1010-145 | 10 | 10 | 145 | 1250 | 1700 | 20 | ||||
ZY5X5-145 | 5 | 5 | 145 | 1400 | 1500 | 18 | ||||
ZY4X5-150 | 4 | 5 | 150 | 1300 | 1300 | 18 | ||||
ZY5X5-160 | 5 | 5 | 160 | 1450 | 1600 | 18 | ||||
ZY4X4-170 | 4 | 4 | 170 | 1450 | 1700 | 18 | ||||
ZY4X5-200 | 4 | 5 | 200 | 1500 | 2200 | 18 | ||||
