| 電圧: | 380ボルト | 原産地: | 中国(本土) | 適用: | 飲料, 食物, 医学, 衣服, 織物, 商品, 機械とハードウェア, 化学薬品, クラフト紙 | ドライブの種類: | 電気 | 銘柄: | tongbao | モデル番号: | tb | 重量: | 45 t | 自動等級: | 自動 | 包装タイプ: | ボール箱 | タイプ: | パッケージライン | 認証: | iso9001: 2000 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 包装材料: | ペーパー | 条件: | 新しい | 次元(L*W*H): | 9.6メートル* 2.4メートル* 2.2メートル(l *ワット* h) | 力: | 110kw | モデル: | 三層段ボールcardboad生産ライン | 有効幅: | 1800ミリメートル | デザイン速度: | 0-100メートル/分 | 経済速度: | 0-80メートル/分 | 利用可能な材料: | クラフト紙 | 加熱方法: | 蒸気加熱 |
包装
| 包装: | プラスチックフィルム |

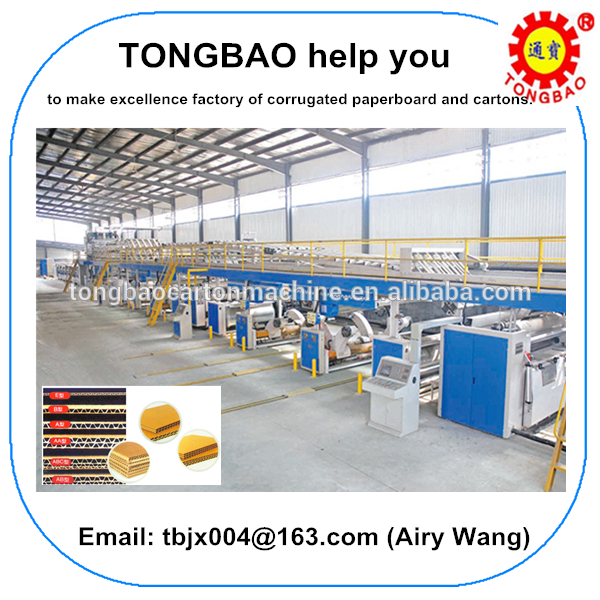

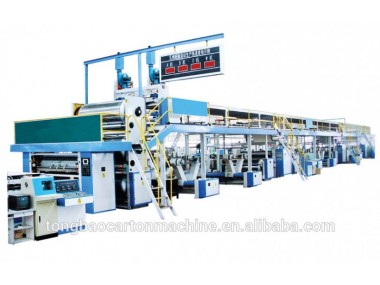

TB High speed three layers crrugated cardboard production line
Three layers corrugated cardboard production line Function and characterisitcs:
Complet corrugated paperboard production line is compose of electric shaftless mill roll stand,surface paper preheater,single facer,conveyor bridge,double facer,Thin blade slitter scorer,NC cut off,right angle stacker and glue making system.our company to absorbadvanced technology from other countries,we get feed back from our users and on the base of our experience more than 20 years for develop the new production,the feature of our machine:high automatization,high quality,high efficiency,high maintenance,easy operation,,compact structure,and nice appearance.
Details description:
This three layers corrugated cardboard production line:
1.The effective width area can be:1600-2400mm,
2.the design speed can reach:60-150m/min
Can according to buyer's requirements to produce different level production line to meet the buyer's need.
Detail equipment:
Machine name | Quantity | |
1 | Electric mill roll stand | 3 |
2 | Absorption Type Single Facer | 1 |
3 | Delivery Bridge | 1 |
4 | Duplex Gluing Machine | 1 |
5 | Ground Preheater | 1 |
6 | Double Surface-paper Preheater | 1 |
7 | Double Facer (Baking and Finalizing System) | 1 |
8 | Main Transmission System | 1 |
9 | Thin blade slitter scorer machine | 1 |
10 | Computerized Cut-off | 1 |
11 | Glue Making System | 1 |
12 | Sheet Delivery and Side Conveyor Machine | 1 |

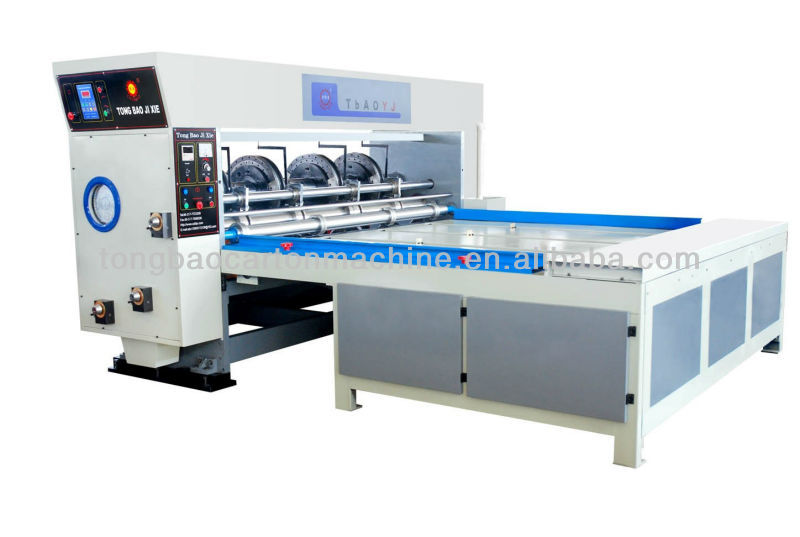

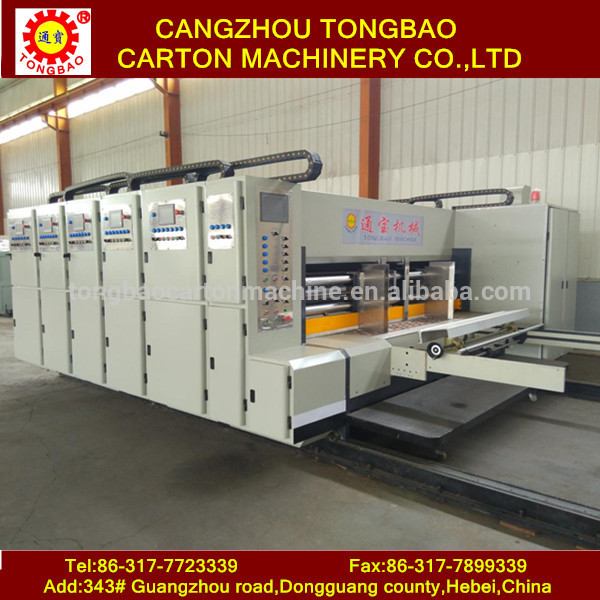

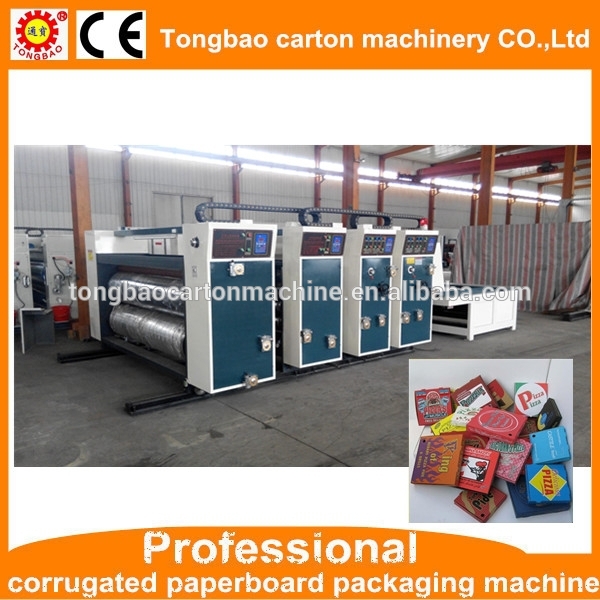

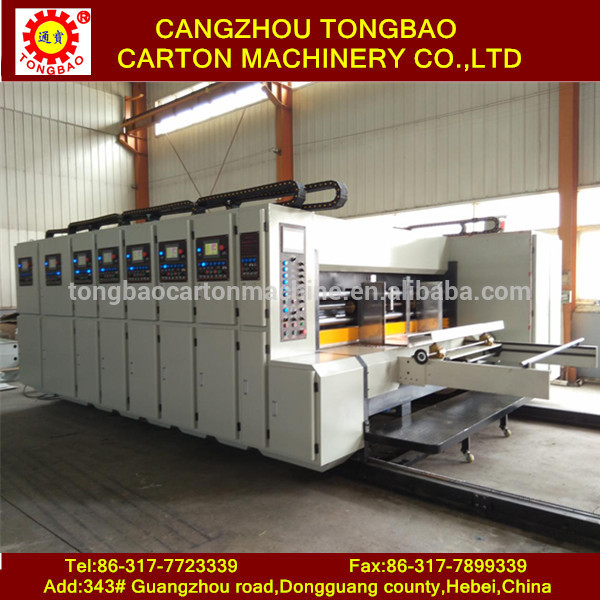

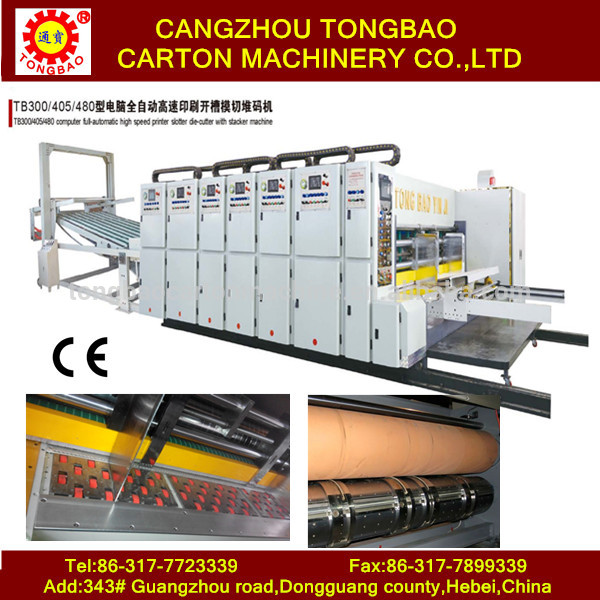

Machie photos:
We can according to buyer's need to produce five layers and seven layers corrugated cardboard production line.
