| 原産地: | 中国(本土) | 銘柄: | derock | モデル番号: | YLSP01 | タイプ: | 椅子のメカニズム | 色: | ブラック&ホワイト | 素材: | アルミ&剛性プラスチック | ストローク: | オプション | 電圧: | 12 24 29VDCオプション | リンケージ: | 1-5アクチュエータ(オプション) | フィールド: | 薬品、 家具、 機械、 レジャー |
包装
| 包装: | 4個または6個または8カートンで個ボックス |
Feature:
Drivetype | single motor drive |
Motor Voltage | 12/24 VDC, |
Max push force | 6000N |
Stroke Length | 20mm-500mm |
Speed | 4 to 48mm/s
|
Duty Cycle | 10% max |
Temperature Range | -25ºC~60ºC |
Switch | Inner (Factory Preset) Not movable |
IP Grade | IP44 (waterproof) |
Specification:
Model | Push force (max) | Pull force (max) | Speed (mm/s) | Stroke (mm/s) | Rated operating rate | Current (max) | ||
Speed load | Speed unload | 12VDC | 24VDC | |||||
P01-01 | 6000N | 4000N | 4 | 6 | 330 | 10 | 8 | 4 |
P01-02 | 4000N | 4000N | 8.5 | 12 | 330 | 10 | 8 | 4 |
P01-03 | 2000N | 2000N | 13 | 18 | 330 | 10 | 8 | 4 |
P01-04 | 1000N | 1000N | 27 | 36 | 330 | 10 | 8 | 4 |
P01-05 | 750N | 750N | 36 | 48 | 330 | 10 | 8 | 4 |
Application field:
Apply to different electric sofa.

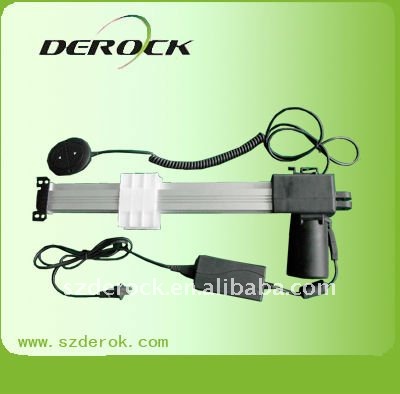

This type linear actuators allow you to screw the sliding block to your device giving flexibility and can also come complete ready to plug in and play out of the control box , include hand controller and power supply.

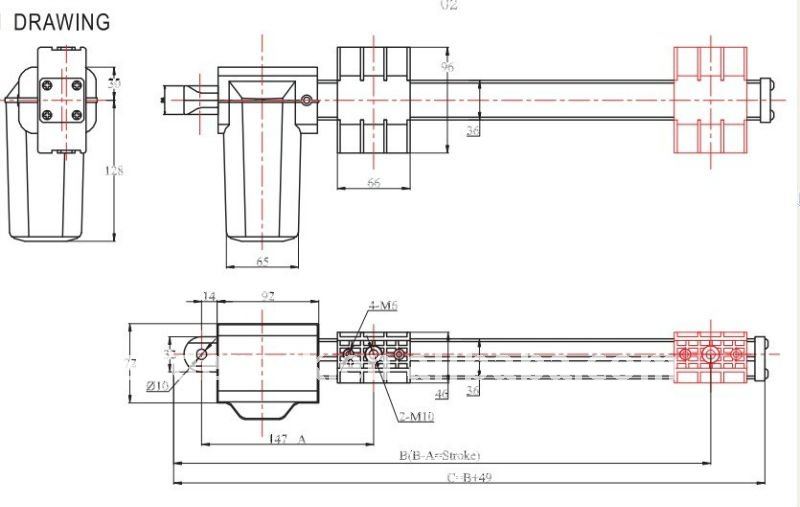

Drawing:
